STEP DOWN lm2596s Vehicle Battery Charger 3A Dual USB Output LM2596 Buck Converter In Pakistan

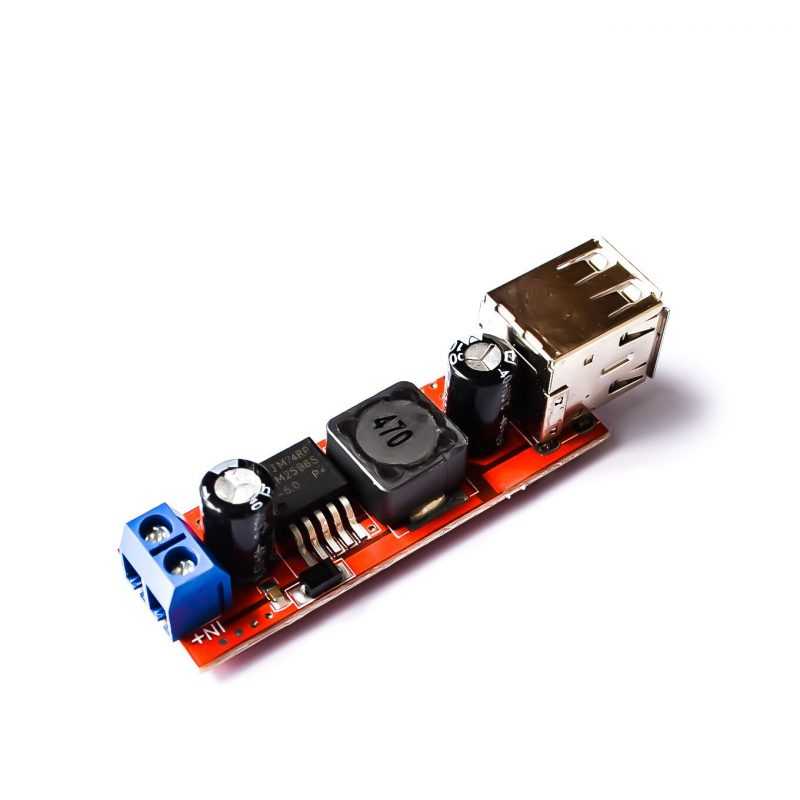

LM2596 3A Dual USB Buck Converter is a Vehicle Battery Charger and has a5V output for charging Phone, MP3, MP4, PSP, or powering Arduino, Pi, etc. Charging Buck Module LM2596 is capable of driving a 3A load Car Battery Charger with high efficiency, low ripple, and excellent line and load regulation. This 3A buck module has applications where the input voltage is higher than the output voltage

• 100% Brand new and high quality!
• This module has short circuit protection
• Input: 6V-40V
• Output Voltage: 5V
• Output Current:3A (MAX)
• Efficiency: 92% (MAX)
• Switching frequency: 150KHZ
• Working temperature: -40 ℃ – + 85 ℃

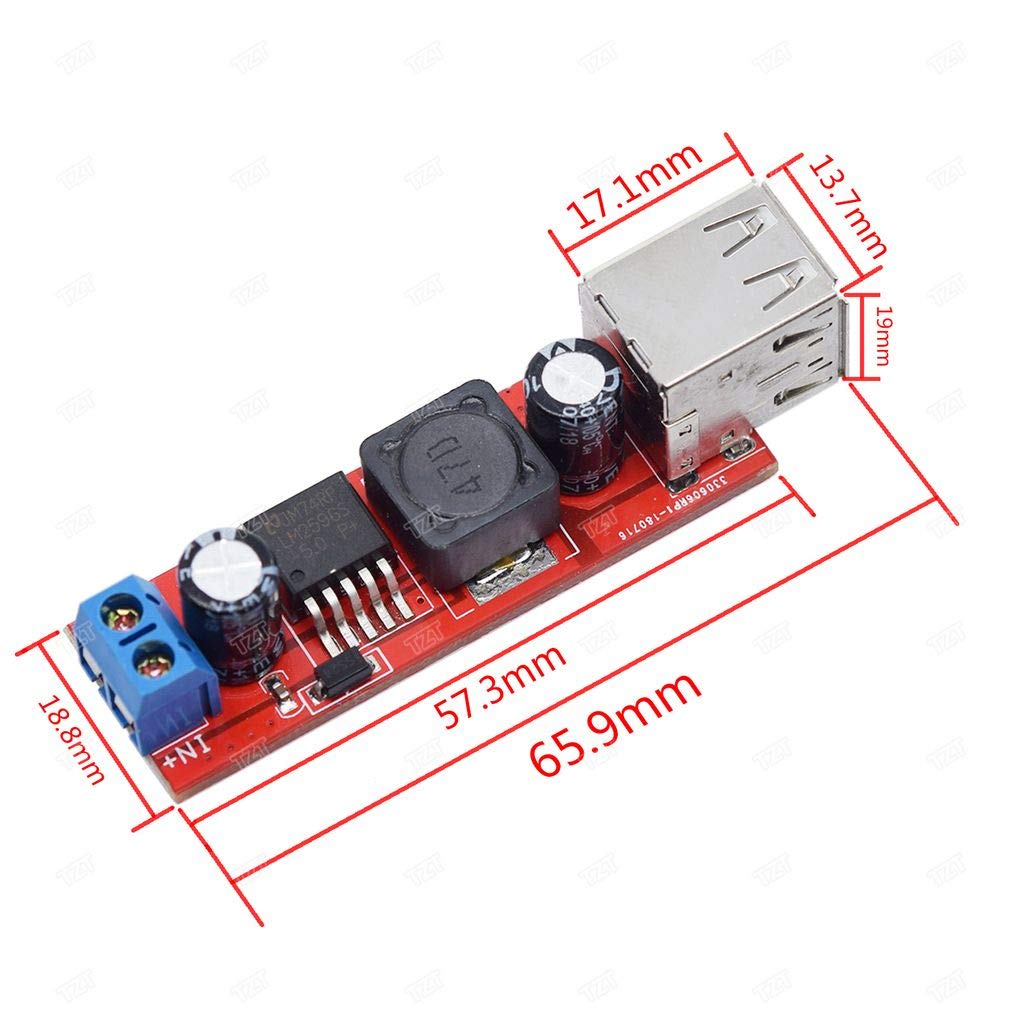

• Size: L: 59mm x W: 21mm x H: 17mm
• Maximum output 3A
• Applications: mobile power, mobile phones, USB powered devices.
• Output Port: Double USB Car Battery Charger

Note: Please observe correct polarity as printed on the bottom of the module:- IN+, IN- or the module will be damaged

• 1 x USB Charge Module  LM2596
