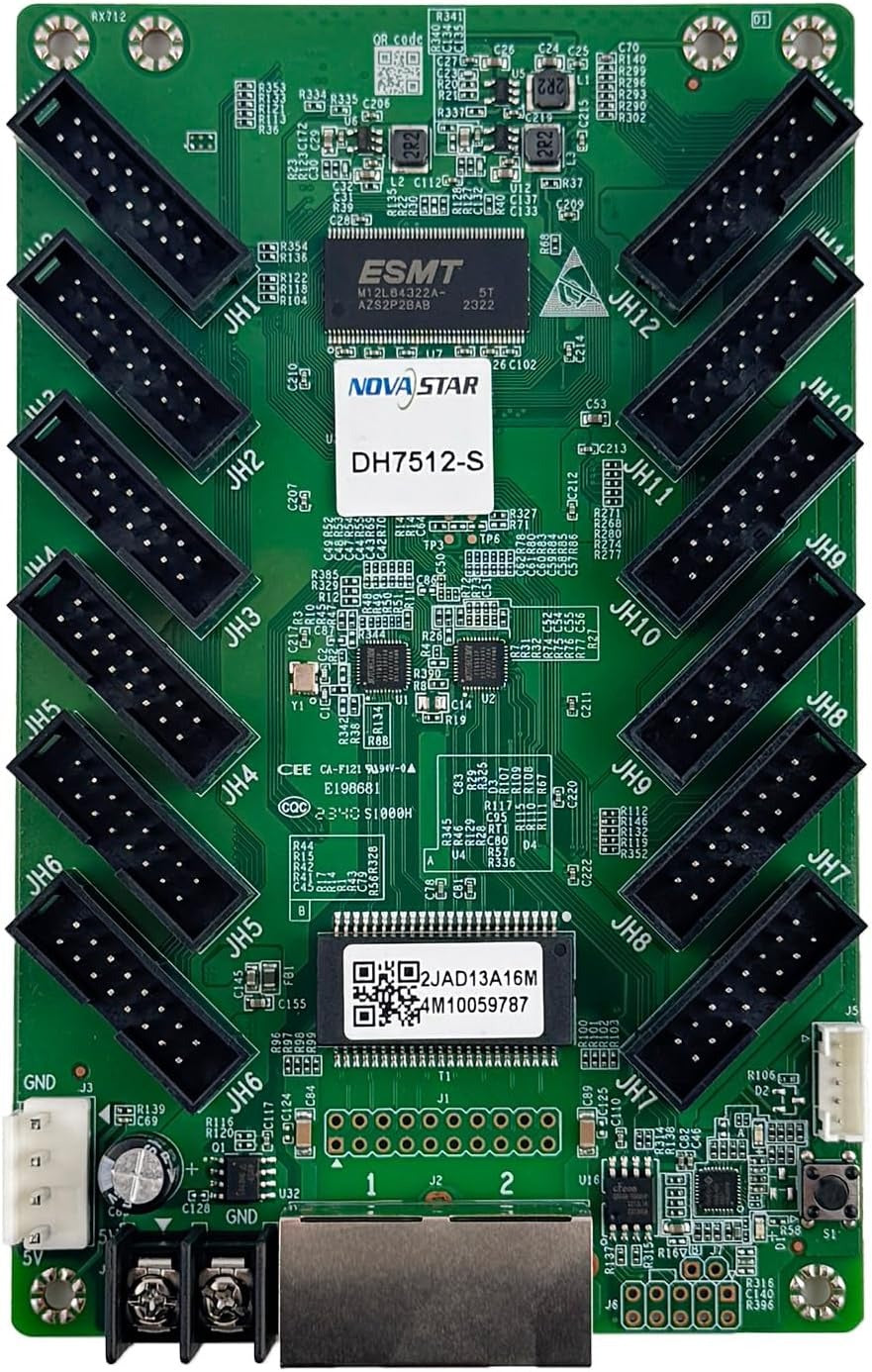

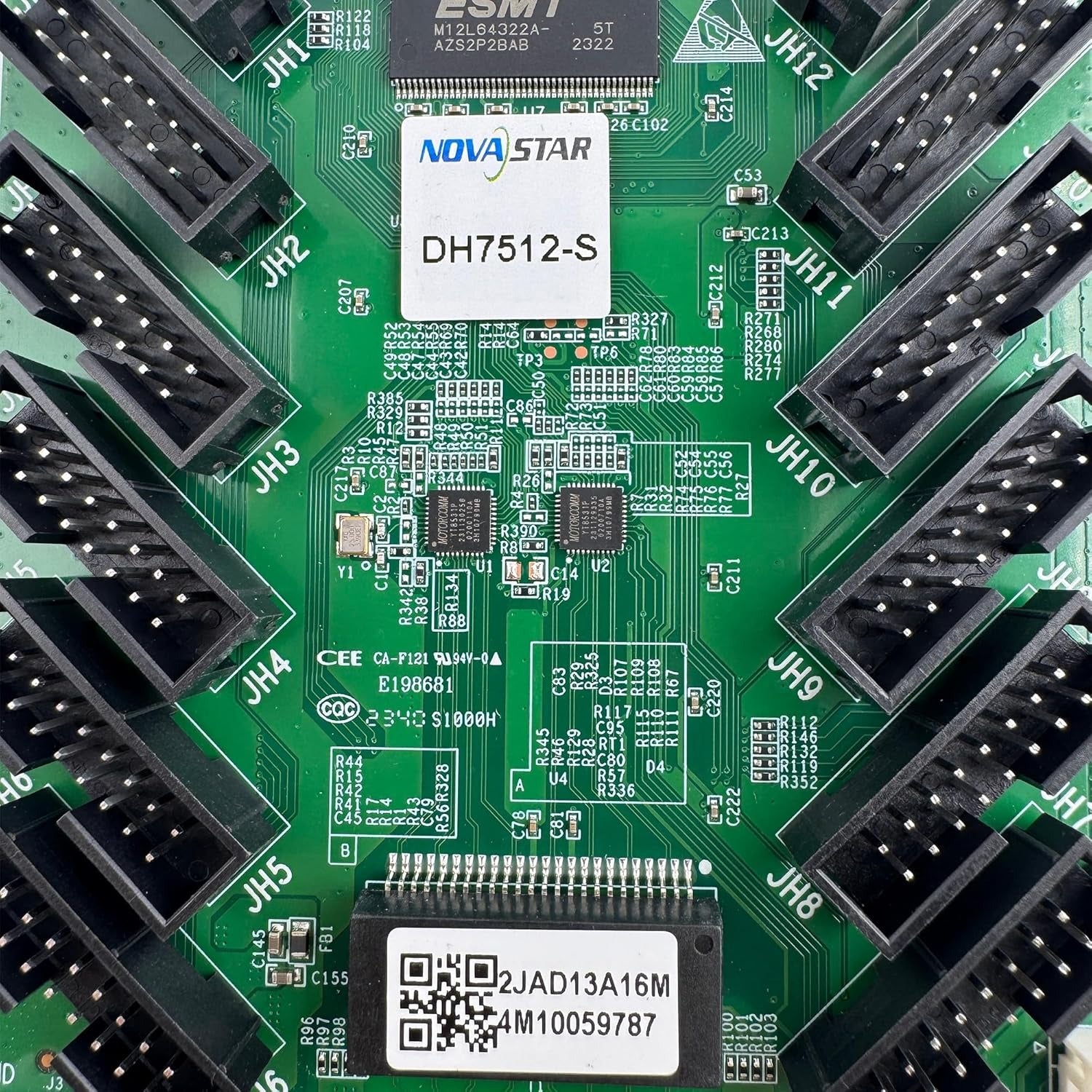

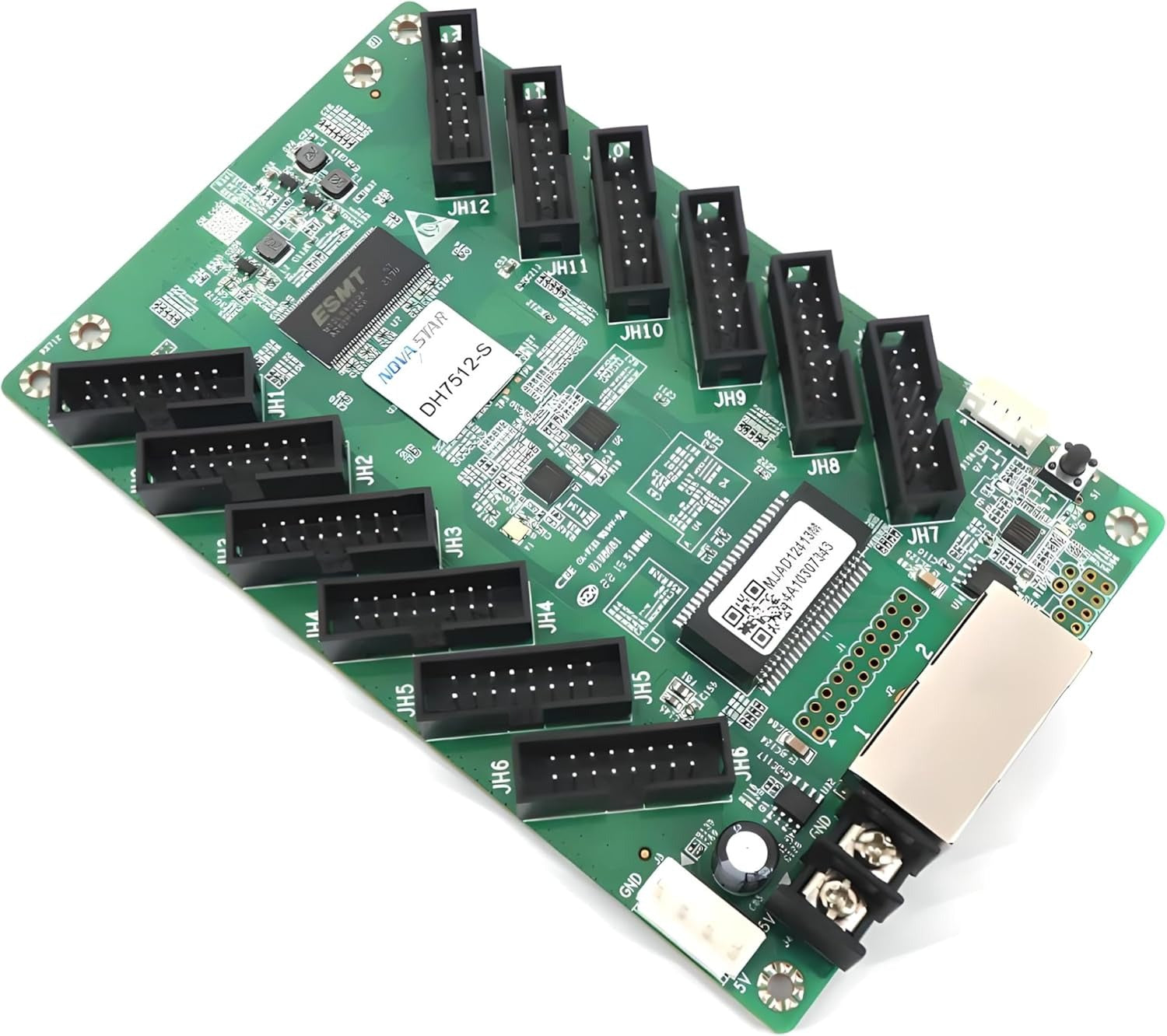

NovaStar DH7512-S Receiving Card

NovaStar DH7512-S Receiving Card: Engineered for Precision LED Display Control

Why Choose the DH7512-S for Your LED System?

• Upgraded Performance – Enhanced from DH7512, supports up to 512×512@60Hz (PWM ICs) and 512×384@60Hz (Common ICs).
• Trusted HUB75E Interface – Features 12 standard HUB75E connectors managing 24 RGB data groups.
• Display Quality Enhancements – Includes pixel-level brightness calibration, mobile-based seam correction (with TU series), gamma adjustment, and 90° rotation.
• Smart Maintenance Tools – Mapping 1.1, real-time monitoring, firmware/config readback, and cabinet LCD tools for diagnostics.
• Reliability You Can Trust – Loop backup & dual firmware storage ensure stable signal even during failures or updates.

Tailored for a Wide Range of LED Applications

Ideal for both indoor and outdoor environments:

• LED Display Panels – Vivid color and uniform brightness in signage or modular displays.
• Outdoor LED Screens – Reliable under harsh conditions with real-time diagnostics and redundancy.
• Indoor Video Walls – Optimized grayscale and gamma tuning for broadcast, corporate, and retail.
• Public Display Systems – Trusted in transport hubs, malls, and venues requiring 24/7 uptime.

Core Technologies That Simplify LED System Management

• Seamless Calibration & Image Adjustment – Via NovaLCT (v5.2.0+) and mobile apps (with TU devices).
• Comprehensive Status Feedback – View temperature, voltage, and runtime via LCD or dashboard.
• Integrated Self-Test Functions – Test patterns, signal status, bit error detection without extra hardware.
• Compact Yet Capable – Dimensions: 145.7×91.5×18.3 mm | Weight: 93.1g

Technical Specifications

• Max Resolution: 512×512@60Hz (PWM ICs), 512×384@60Hz (Common ICs)
• Connectors: 12× HUB75E, Gigabit Ethernet, 5-pin LCD, Self-test Button
• Software: NovaLCT v5.2.0+, Mobile Support for Seam Correction
• Voltage Input: DC 3.8V–5.5V
• Power Consumption: 2.5W
• Operating Temp: -20°C to +70°C
• Storage Temp: -25°C to +125°C
• Humidity: 10–90% RH Operating, up to 95% RH Storage
• Certifications: RoHS, EMC Class A
• Packing: 100 units per box, blister-packed

Why the DH7512-S Stands Out

• Enhanced version of DH7512 with 3D support and smarter diagnostics
• Pixel-level calibration and real-time voltage monitoring built-in
• No external tools needed for testing, correction, or firmware readback
• Perfect for small modules to full video walls in all environments
• Stable continuous operation with signal redundancy and dual-program safety

Perfect For:

• Indoor/Outdoor LED Display Panels
• LED Video Walls for Broadcast or Events
• Public Information & Transport Displays
• Corporate Digital Signage Systems
• Retail Advertising Screens
• Stage & Rental Installations

NovaStar DH7512-S from AzarPixel – Upgrade Your LED Control with Precision, Power, and Reliability

From advertising displays to mission-critical video walls, the DH7512-S gives you the tools to control your LED systems with accuracy and confidence—delivering seamless performance, vivid visuals, and smart diagnostics in one compact solution.
