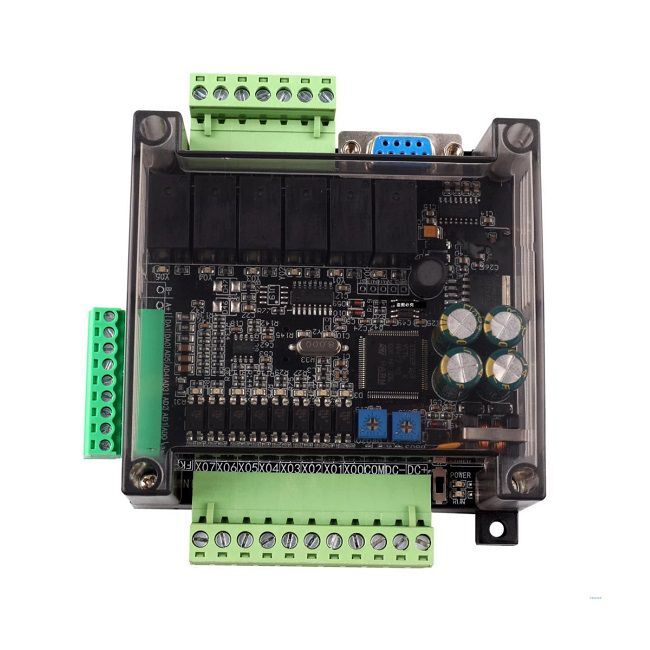

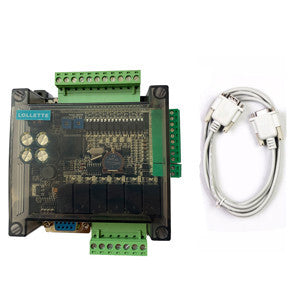

The Mitsubishi FX3U-14MT 6AD 2DA 485 RTC is an advanced expansion module designed for the FX3U series PLC. It enhances the PLC's capabilities by adding analog I/O, high-speed counters, and communication interfaces, making it suitable for complex automation tasks.
Model: FX3U-14MT-6AD-2DA-485-RTC
PLC Type: FX3U-14MT
Digital I/O: 8 inputs / 6 transistor outputs (24VDC/5A, recommended usage at 1A)
Analog Inputs: 6 channels, 12-bit resolution
A0–A2: 0–10V
A3–A5: 0–20mA
Analog Outputs: 2 channels, 12-bit resolution, 0–10V
High-Speed Counters: 6 channels, default 8kHz (supports 1-phase or 2-phase counting)
Pulse Output: 100kHz (recommended 40kHz)
Communication Ports:
1x RS232 (DB9, 38.4kbps)
1x RS485
Programming Software: GX Developer or GX-Works 2
Programming Steps: Up to 8000 steps
Power Supply: 24VDC, 1A
Dimensions: 107mm x 120mm x 43mm
Weight: 255g
Protection: Corrosion-resistant, moisture-resistant, and anti-static
Real-Time Clock (RTC): Includes CR1220 battery for timekeeping CÔNG TY TNHH F&E+1Nextcom+1
This PLC board is ideal for applications requiring precise analog signal processing, such as:
Temperature and pressure control
Flow monitoring
Interface with Human-Machine Interfaces (HMIs) via RS485
Systems needing real-time clock functionality
