Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR,automatic identification of the transistor pinout.Test NPN and PNP transistor common-emitter current amplification factor,the base-emitter threshold voltage, off the collector...
Automatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR,
automatic identification of the transistor pinout.
Test NPN and PNP transistor common-emitter current amplification factor,
the base-emitter threshold voltage, off the collector - emitter leakage current.
Support 2 resistors measurement, show its positive and negative, on-state voltage.
Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.
Automatically test the pins of a component and show on the display.
Measure FET gate threshold voltage and gate capacitance.
For the following 2100Ω resistor while measuring its inductance measuring range from
0.01mH - 20H.

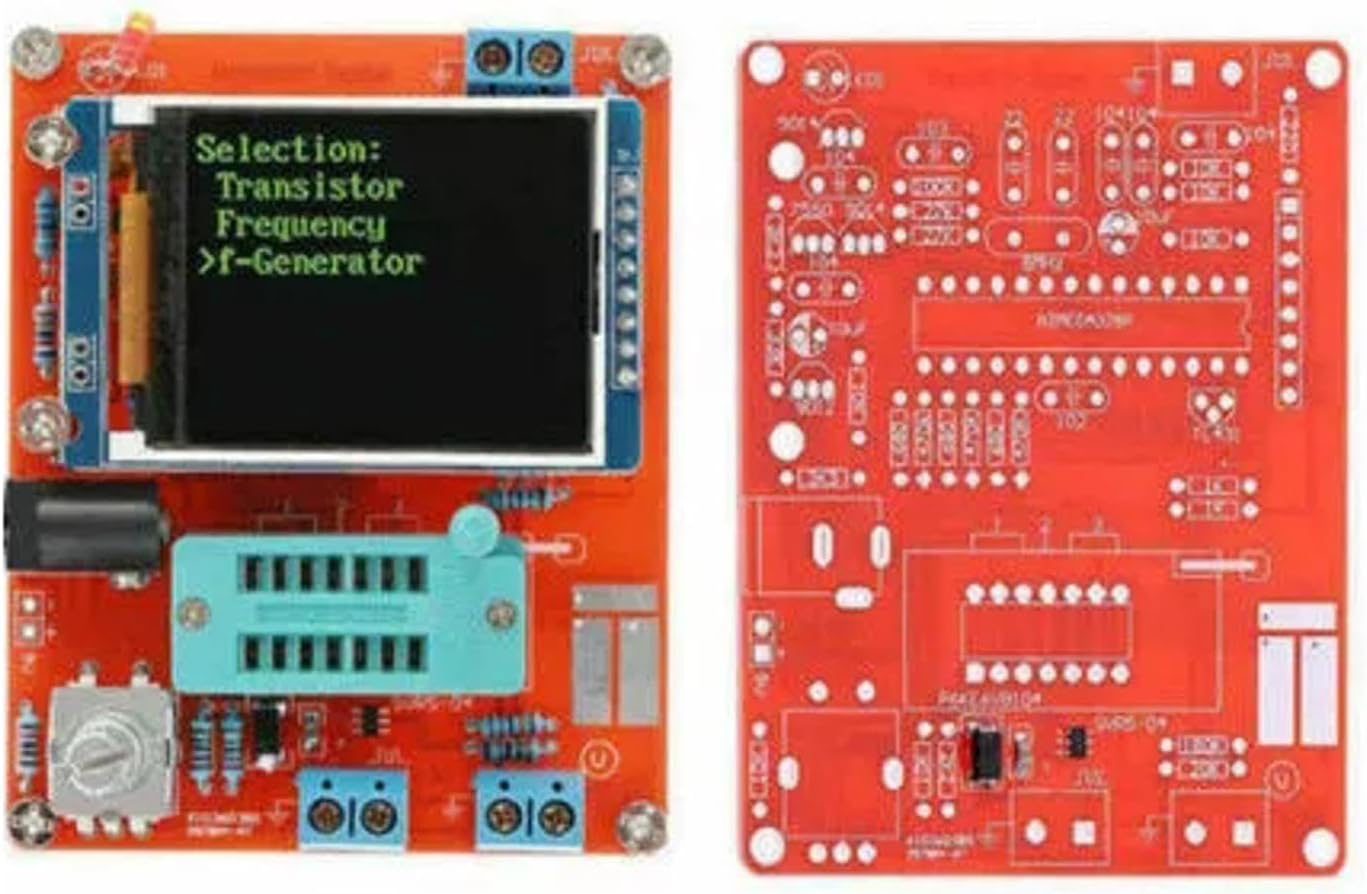

Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHz
and can generate 1%-99% PWM(pulse width modulation) signals

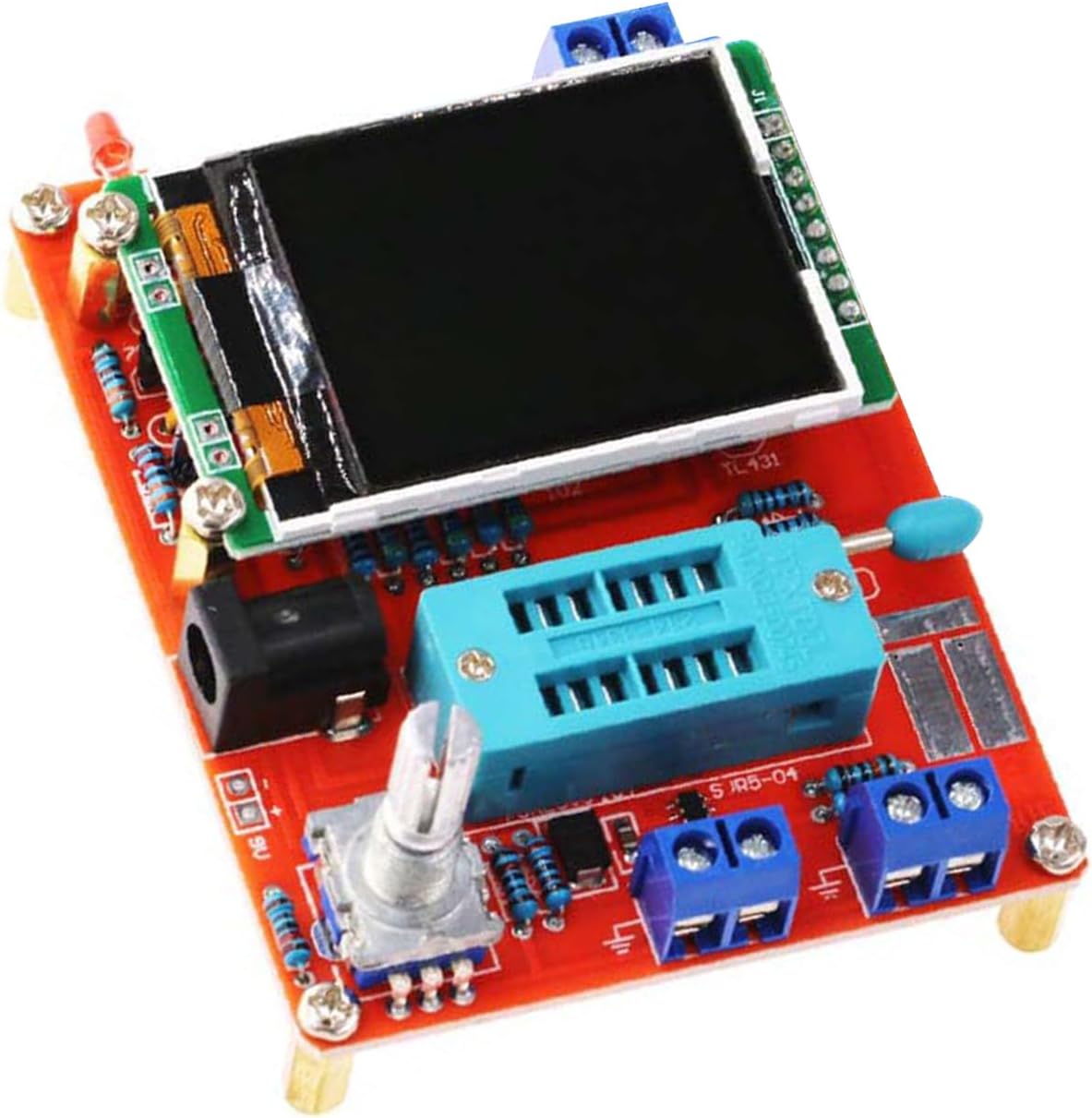

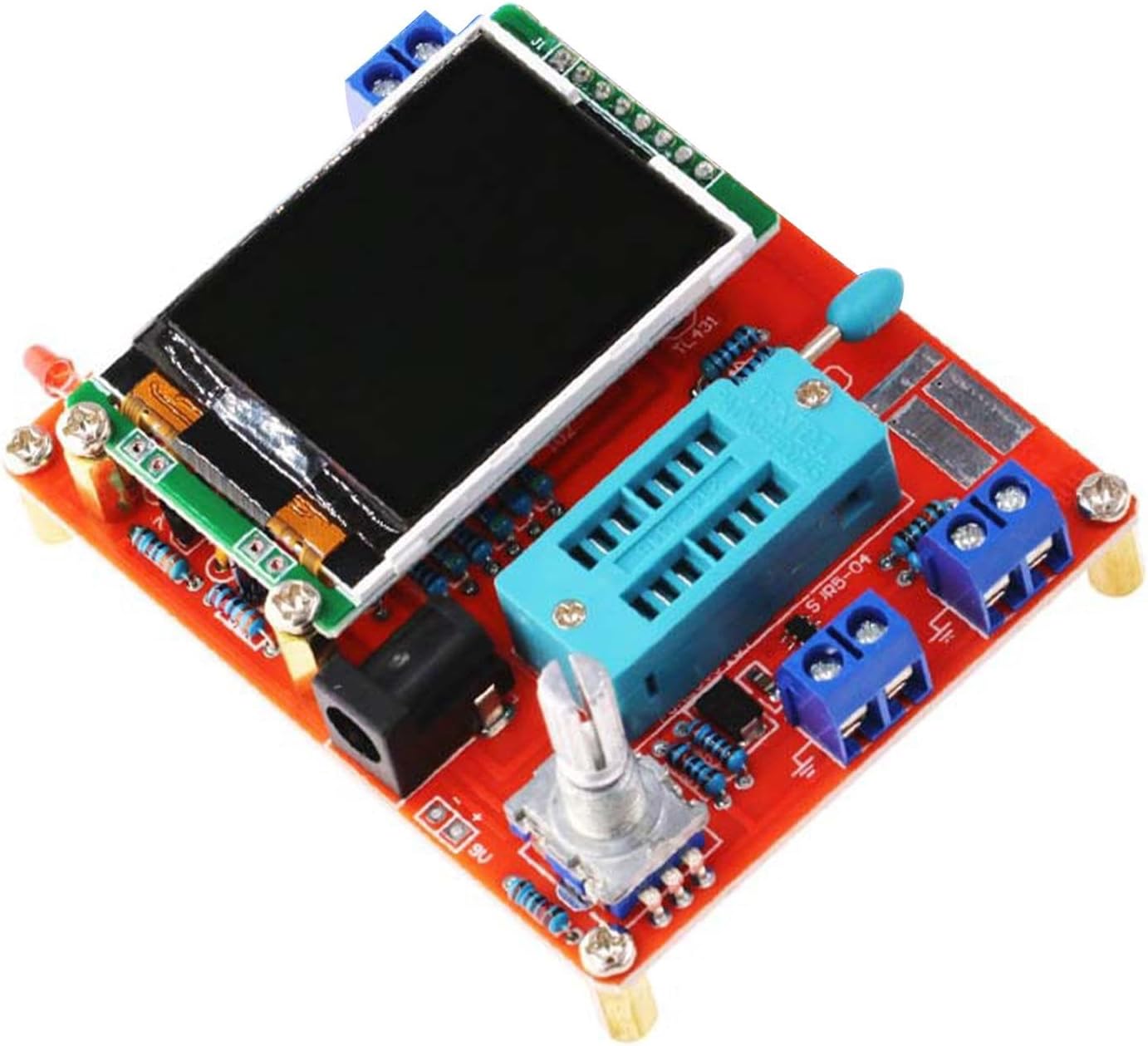

Type: Assembled Kits
Display:160*128 LCD
Power Supply:1 * 9V Battery(not included); DC 6.8-12V
Current Approx. 30mA
Resistance Measurement Max. 50MΩ
Resistance Resolution 0.01Ω
Capacitance Measurement 25pF~100mF
Capacitance Resolution 1pF
DC Voltage Measurement Up to 50V
Screen Size Approx. 3.7 * 3cm / 1.45 * 1.18in

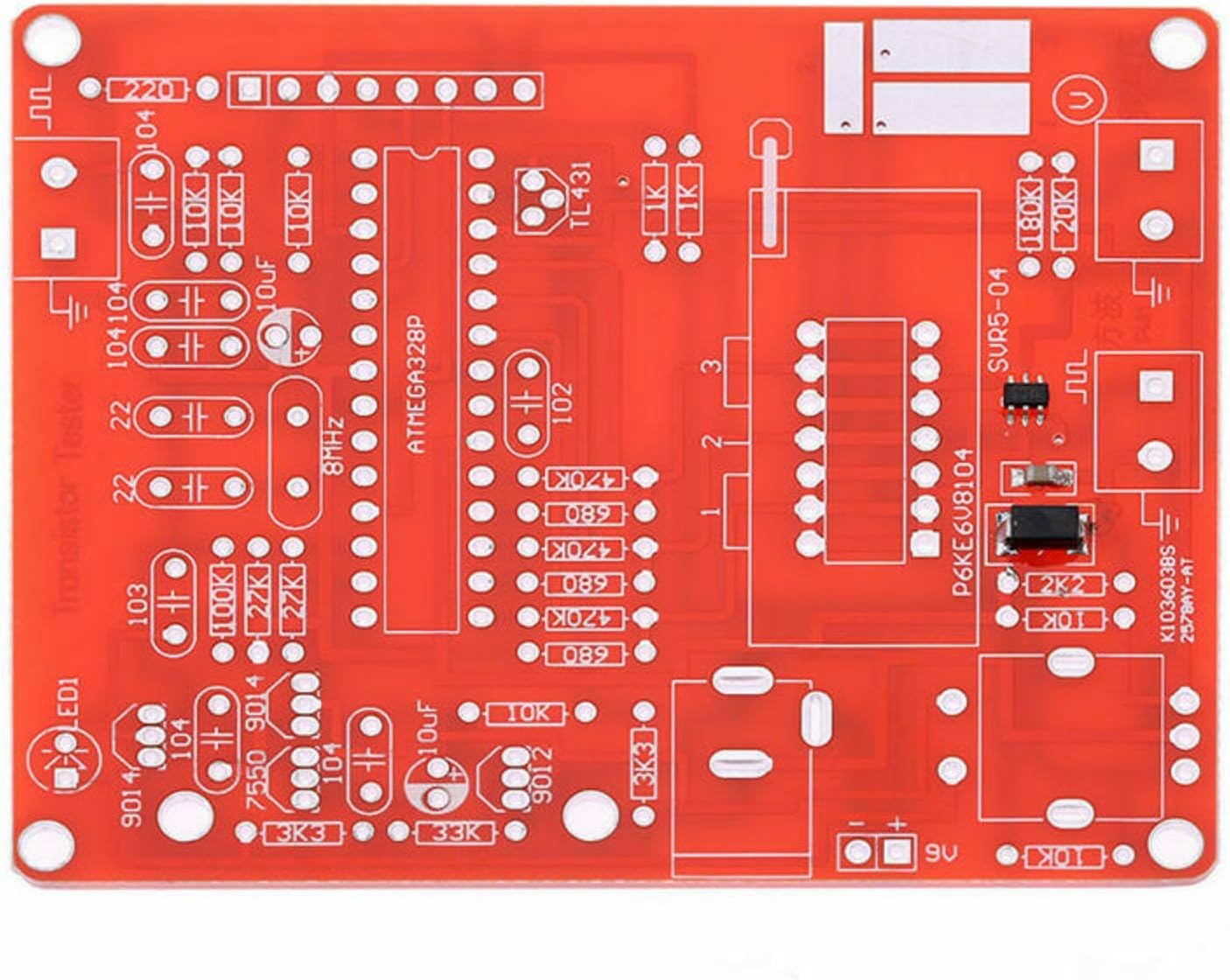

PCB Size Approx. 7.8 * 6.2cm / 3.1 * 2.44in
1 Set Assembled Kits
