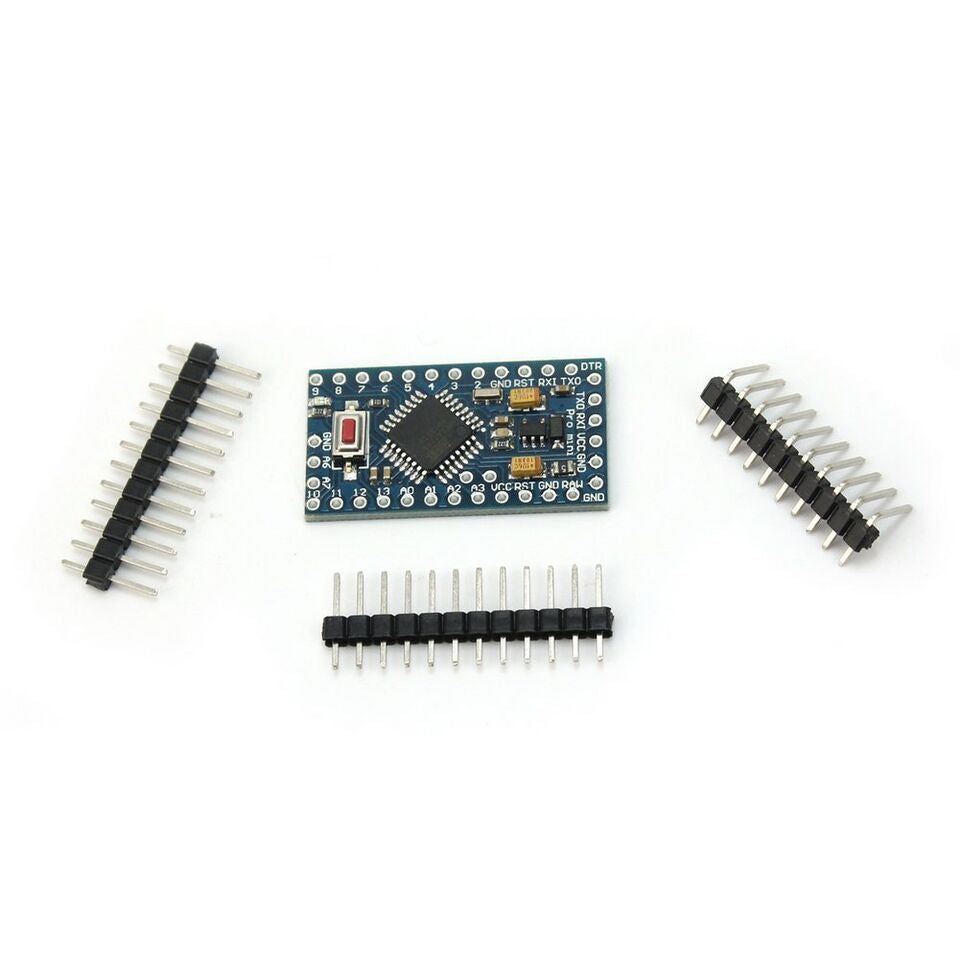

The Arduino Pro Mini is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an...

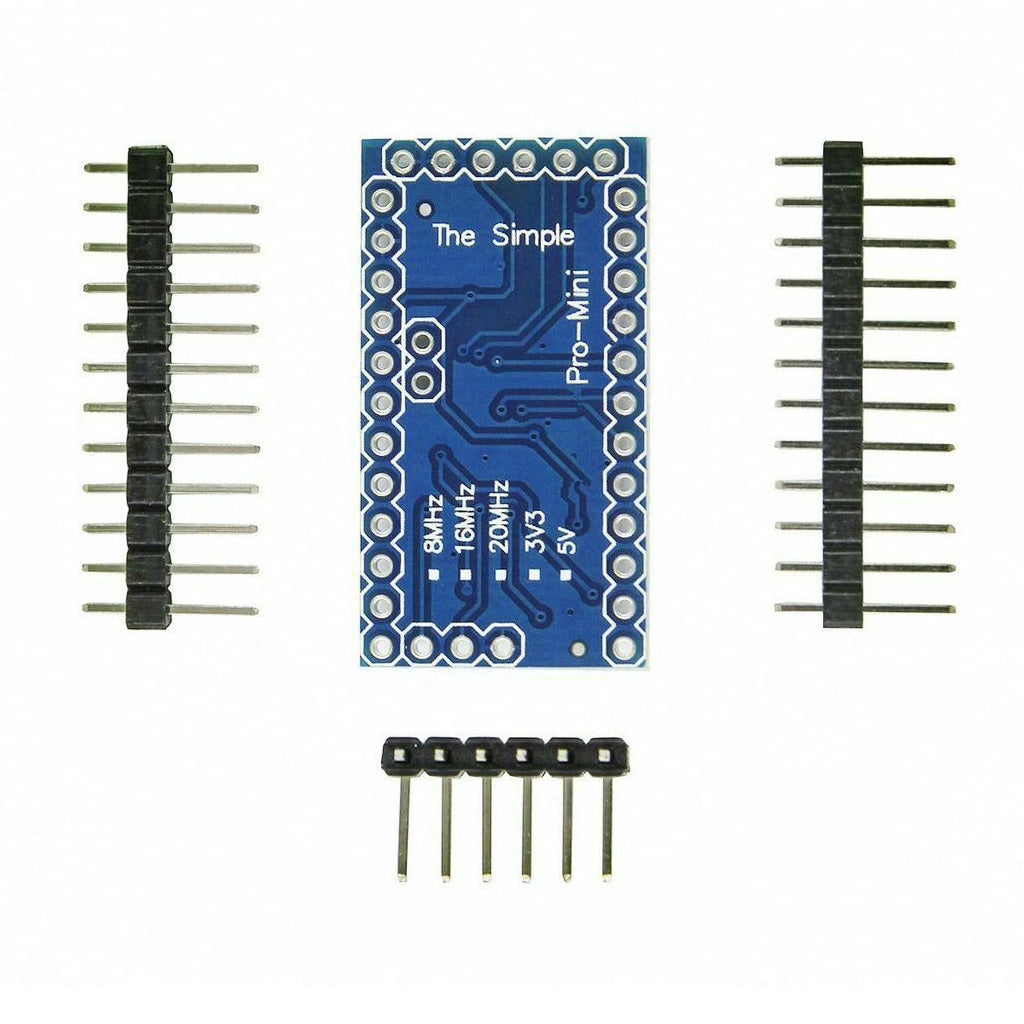

The Arduino Pro Mini is intended for semi-permanent installation in objects or exhibitions. The board comes without pre-mounted headers, allowing the use of various types of connectors or direct soldering of wires. The pin layout is compatible with the Arduino Mini.There are two version of the Pro Mini. One runs at 3.3V and 8 MHz, the other at 5V and 16 MHz.
|
Microcontroller |
ATmega328 |
|
Operating Voltage |
5V |
|
Input Voltage (limits) |
5-12V |
|
Digital I/O Pins |
14 |
|
DC Current per I/O pin |
40ma |
|
PWM Pins |
6 |
|
Flash Memory |
32KB |
|
SRAM |
2KB |
|
EEPROM |
1KB |
|
Clock Speed |
16MHz |
