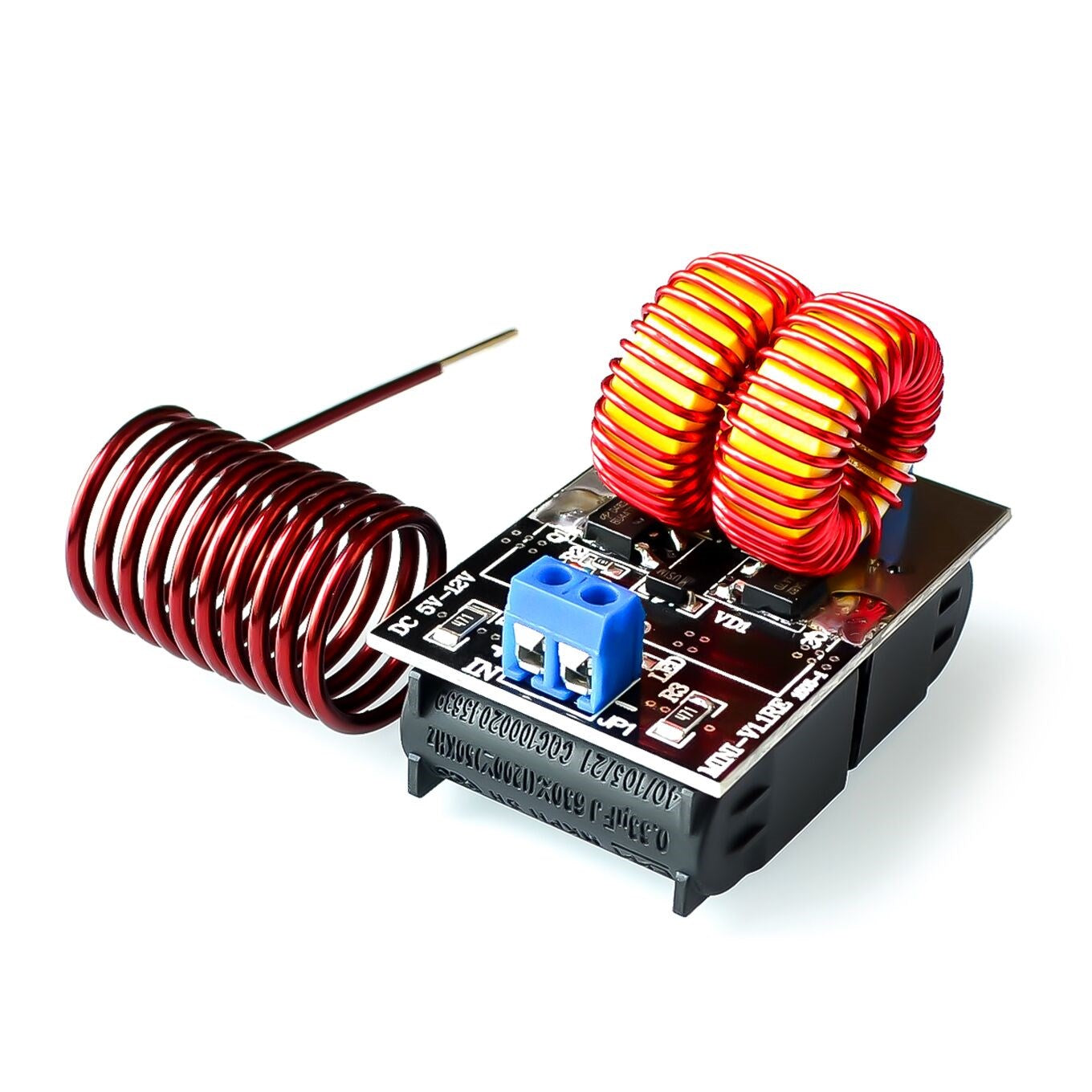

Mini ZVS Heating Board DC5~15V 120W Inductive Flyback Driver Ignition Coil

Description:

•  This mini plate ZVS finished board without tap, without heating coil, ignition coil, cooling fan etc.
•  Input voltage: DC 5V~12V
• Maximum power: 120W (12V induction heating). Ignition coil 5 5 turns, 12V, about 30W.

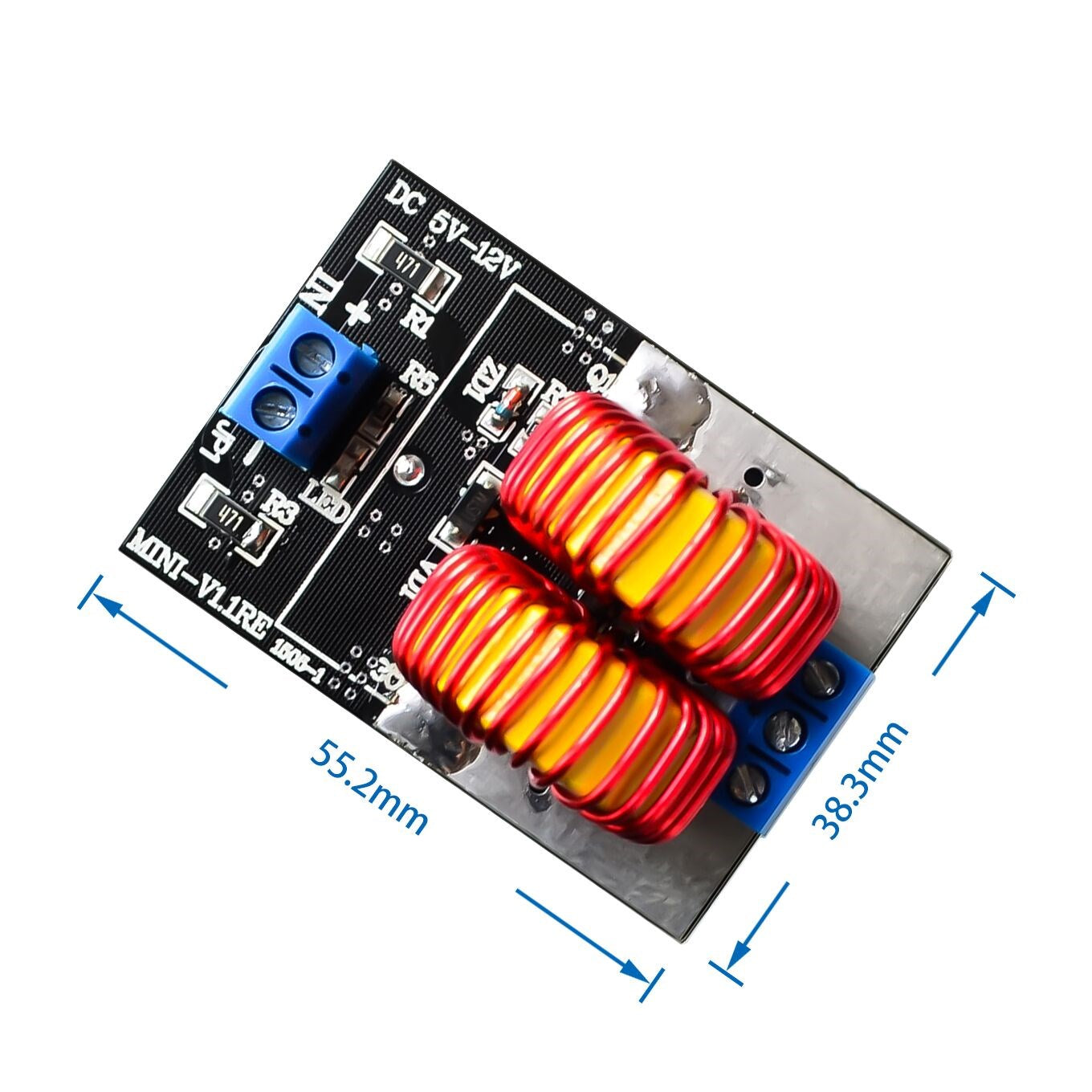

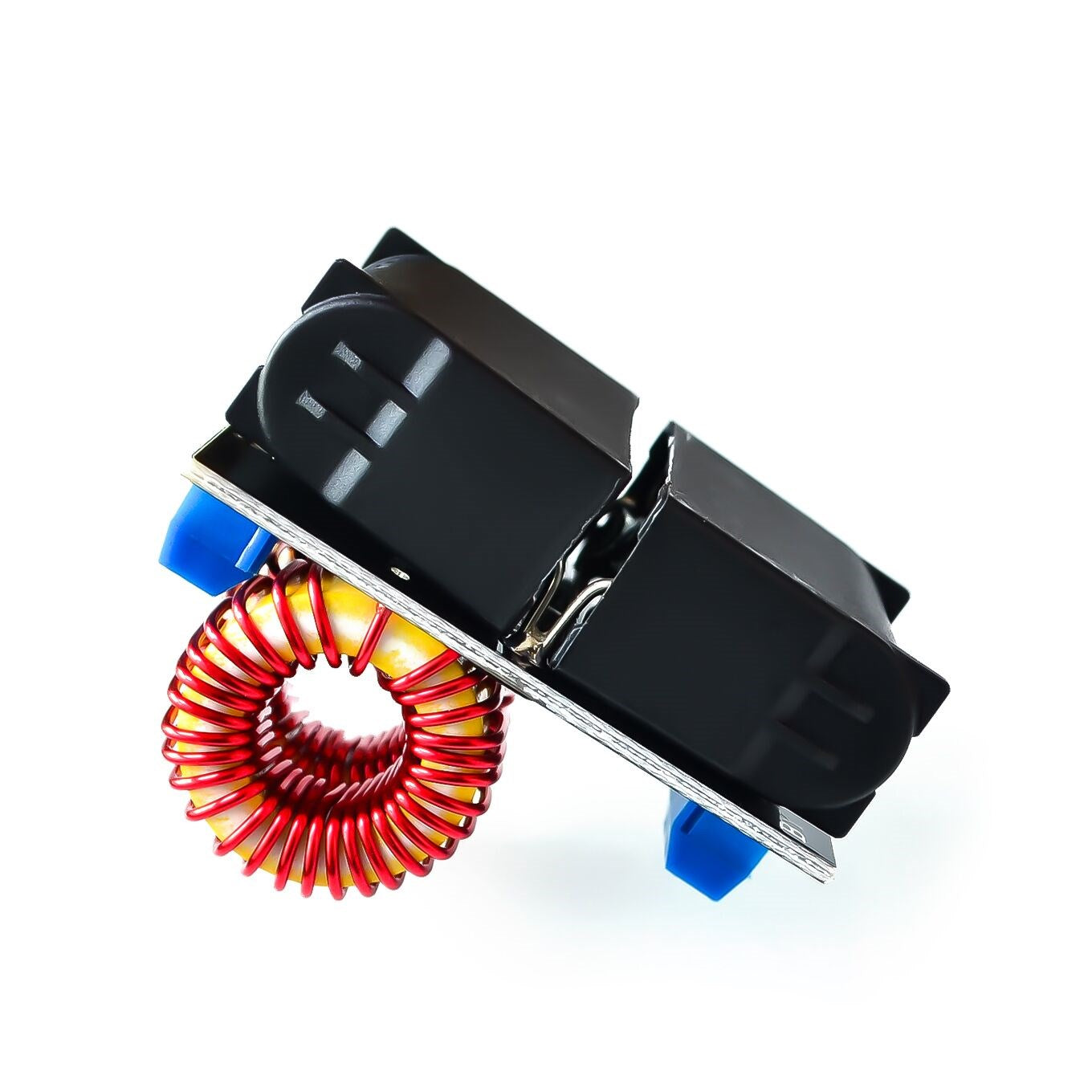

• PCB size: 55mm * 37mm * 1.6mm
• The width of the heating coil, the heating object is between 1/3 and 1/2 of the heating coil diameter as much as possible, and most are less than 2/3.
• 5 minutes power work for induction heating and cooling. When the induction heating current is large, the heating coil will be relatively large. When heated, some of the heat generated by the heated object is passed to the heating coil, which increases the temperature of the heating coil over time. If the heating coil looks like a terminal, the plastic terminal part will melt!!!! Therefore, induction heating is the best heating coil welded directly to the PCB. This buyer, please be careful.

Features:

• The maximum power of 120W (12V induction heating)
• Push the ignition coil 12V, when the primary 5 + 5 turns, 30W or so.
• The input voltage DC 5V ~ 12V
• Make sure that all components soldered correctly, the power line is not reversed negative, then power!

Specification:

• Input voltage: 5v-15v
• Module dimensions: 5.5 x 3.7 x1.6 cm(L*W*H)
• Coil size: length:7.5cm
• width: 2.8cm

Precautions:

• When using battery and battery power supply, it must be ensured that the working voltage is above 4.5V! Do not ensure that the voltage is always above 4.5V during operation, do not use battery or battery power supply! Do not use dry battery power!
• The width of the heated object should be between 1,3 and 1,2 of the inner diameter of the heating coil, and the maximum should not exceed 2,3!
• The diameter of the heated object should be controlled within 20mm as much as possible. If the heating is too large, it will be difficult to heat up to red. After all, the power is limited.
• Inductive heating, usually work for 5 minutes to power off cooling. Because the current is relatively large during induction heating, the coil heat is also relatively large. When heated, part of the heat generated by the heated object is transmitted to the heating coil. For a long time, the temperature of the heating coil is high. If the heating coil is connected to the terminal, the plastic part of the terminal will be melted! Therefore, it is best to solder the heating coil directly to the PieceB during induction heating.
• For long-term use, it is recommended to use a copper tube as a coil and cool it with water.
• Blue LED power indicator, there is no electricity, you can see if the light is off!

Package Included:

1 x induction heating power supply module
1 x coil
