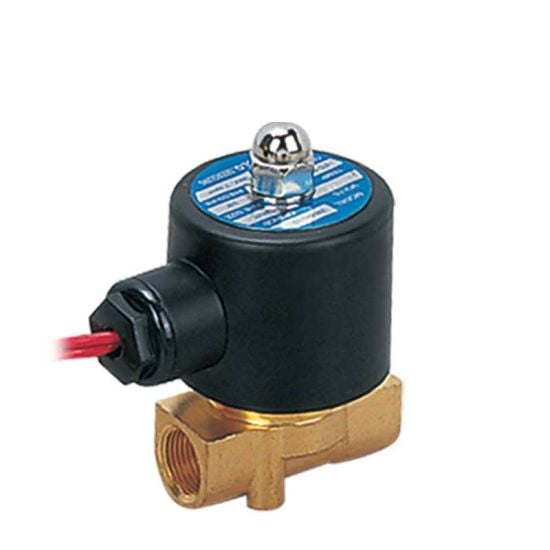

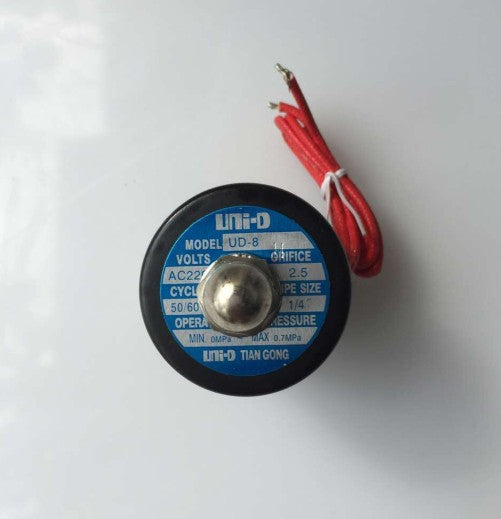

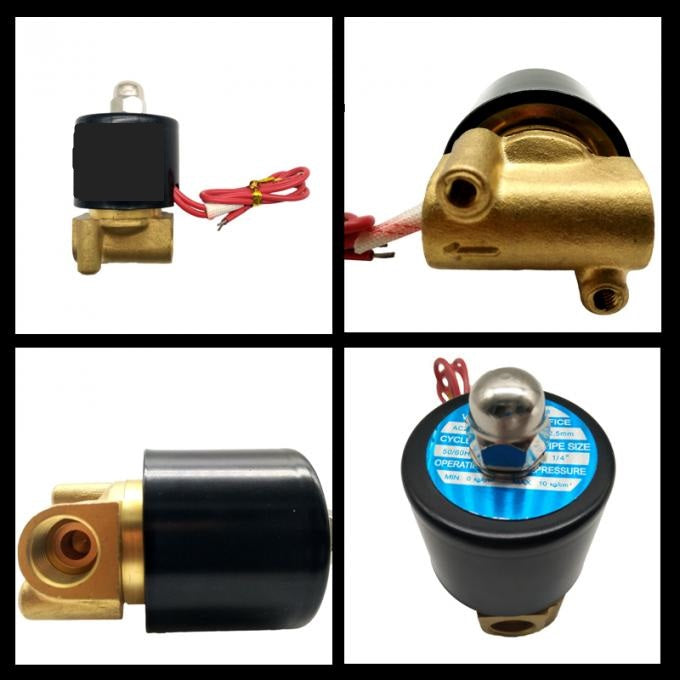

UNI-D Solenoid Valve 2way 1/4″ (UD-8)| Electronic Solution

• UD series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid valve.
• Able to be operated directly without pressure
• Availability of fluid type：water, air, light oil, gas, vacuum
• Acceptable for customizeation：Viton (130℃) , Silicone (130℃) and EPDM (130℃).
• Before pipelining, the pipe line must be very clean without any contaminants or any other things not ought to be existed.
• To prolong the life time of the product, Y-line filter should be installed in the front end of solenoid valve.
• It should be installed horizontally；vertical installation is not advisable.

Not apply for fluid of
Liquid status when heat, solid status when cool.
Viscosity over 50 cst.
Corrosive fluid.
