DC3.7-12V 315mhz RF Wireless Receiver Remote Control Transmitter DIY Module A
Wireless remote control switch 315mhz rf transmitter receiver 3.7v 4.5v 9v 12v motor Forward Reverse steering Controller module
Specifications:
Size: 21*11*5mm
Input voltage: DC3.7-12V
Output voltage: DC3.7-12V
Frequency: 315.92MHz
Standby current: 0.2MA
Maximum load current: less than 0.4A (less than 4 watts of equipment),Suggested load less than 0.2A
Working current: 6MA
Output voltage: Consistent with the Input supply voltage
Remote control battery: 2 x CR2016 Batteries(InCluded)
Remote control distance: <=20m
Feature:
Remote distance receiving, has stable performance, good signal and sensitive response.
It can be controlled remotely, making work smarter and more convenient.
Ultra low standby current, it is suitable for battery-powered, when it is standby will automatically enter the low-power sleep state, please press the remote control button hold for 0.5 seconds or more)
The receiver itself with overcurrent protection,when the current exceeds the rated current,will be entered into turn off power protection,such as the motor to start or block the current is doubled,beyond the rated current will be flash
Controller indicator:
Momentary - Press and hold the up button to rotate forward, release to stop,Press and hold the down button to reverse and release to stop
Delay for 5 seconds - Press and hold the up button to rotate forward, stop 5 seconds after releasing the hand, press and hold the down button to reverse, and stop 5 seconds after releasing the hand,
Instruction Manual:
1. Clearing Code: PRESS the Learning Button,until the receiver guidance indicator light does not light up,it mean Clearing Code
2. Learning Code: PRESS the Learning Button,The receiver Led indicator ON.Press remote button A 1 time,Led indicator flash for 1 times,
Then Press remote button B 1 time,Led indicator flash for 1 times again,it mean learning successfully

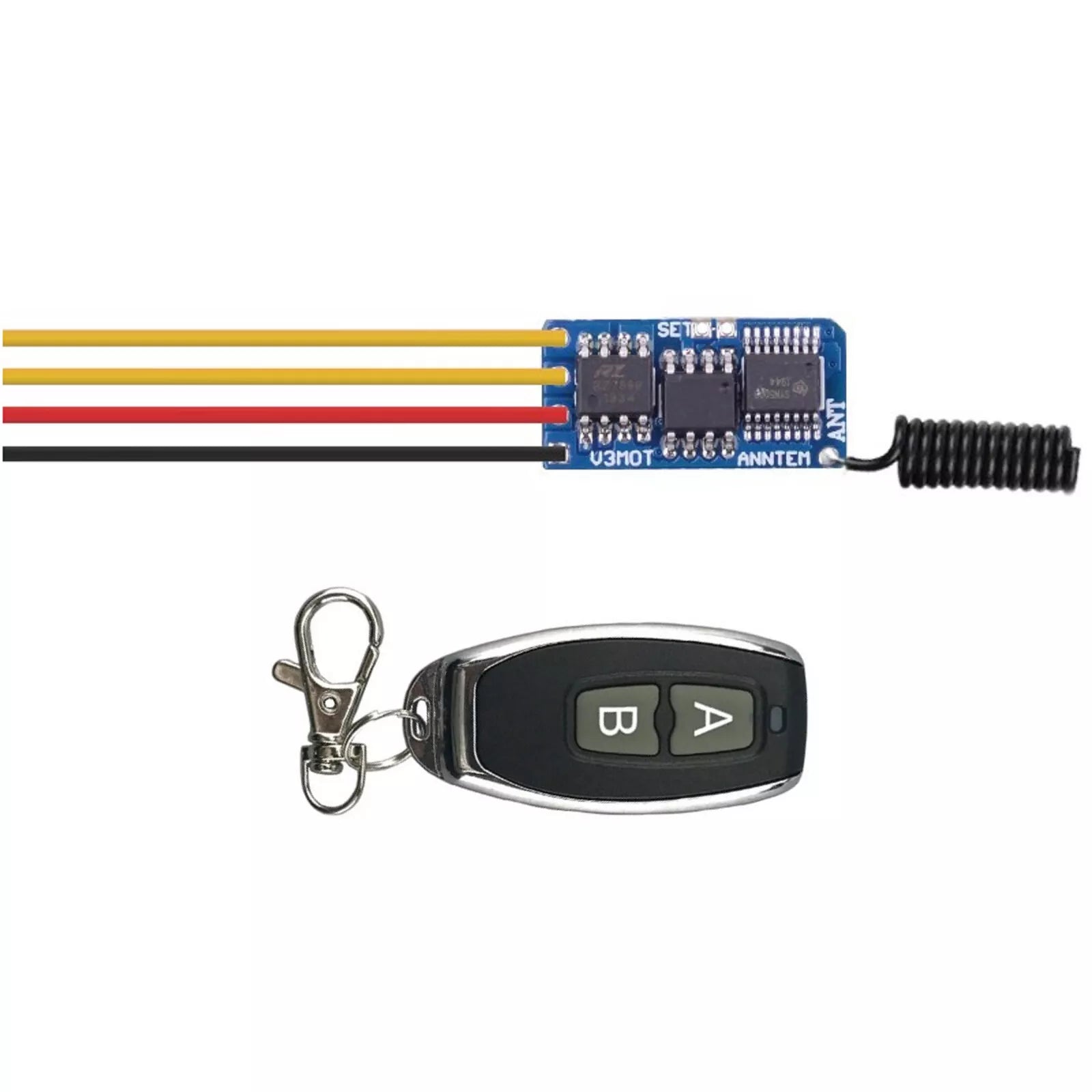

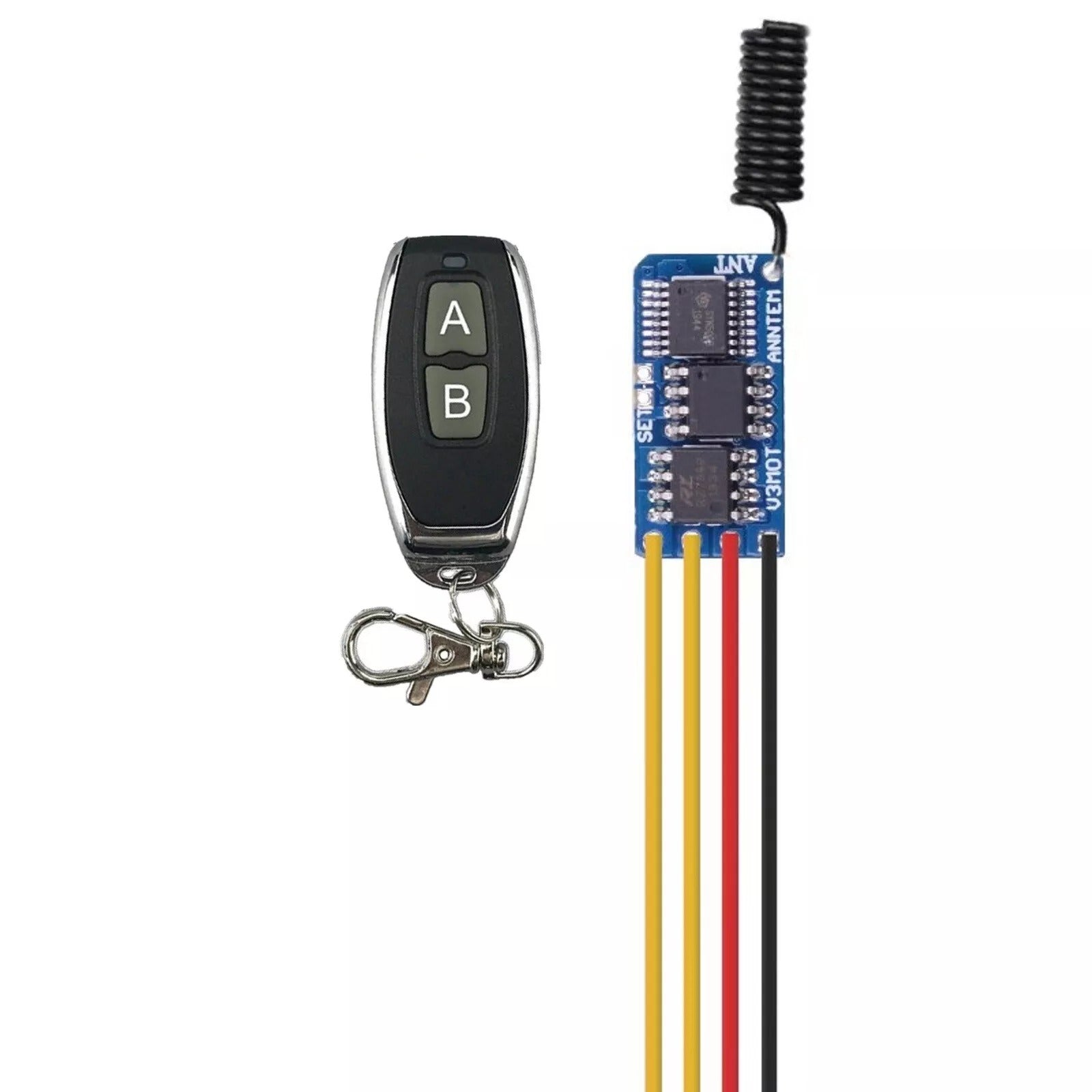

Package Includes:

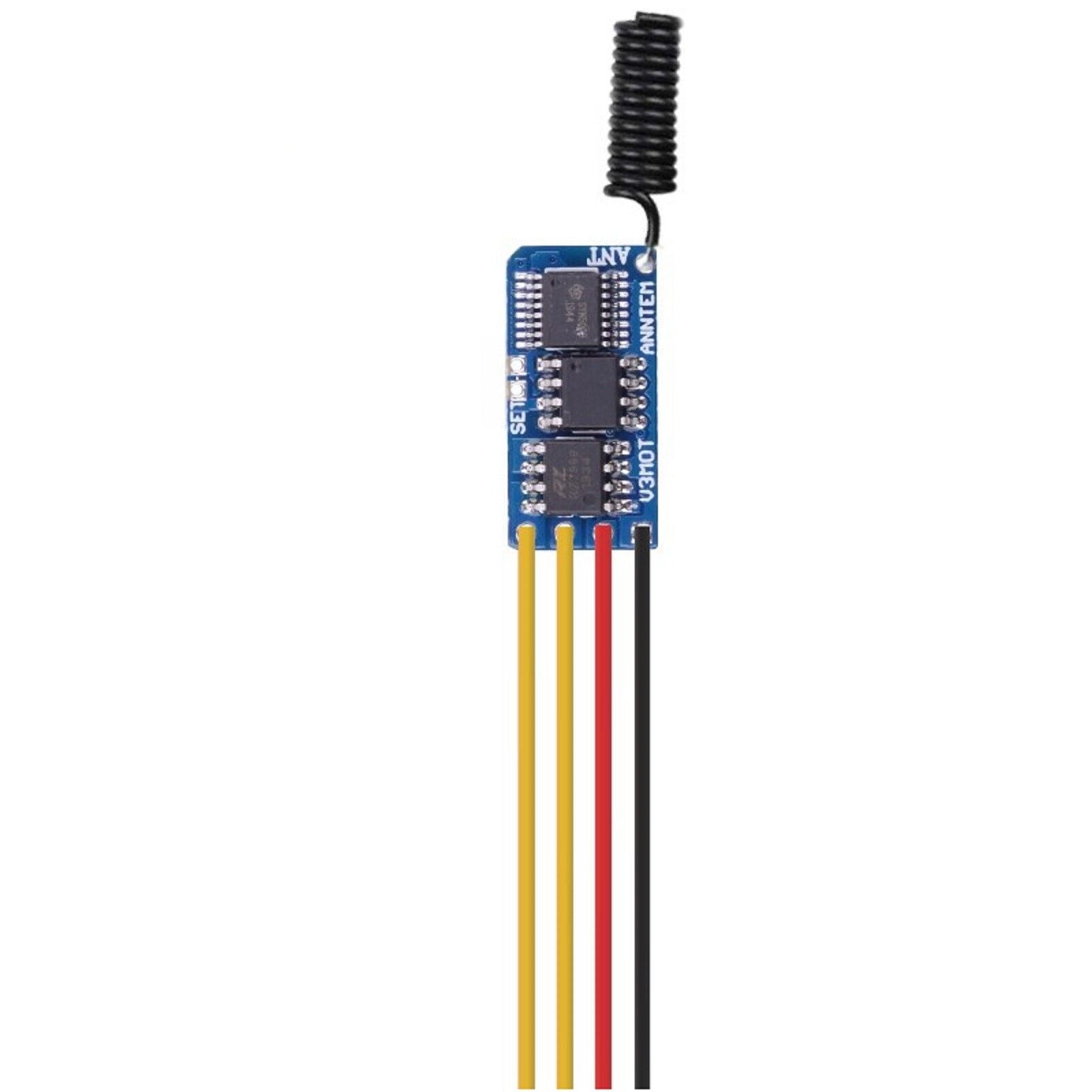

1x DC3.7-12V Wireless Receiver
1x Remote control
