TDA2030A Module DIY Kit 6-12V Single Audio Amplifier Board Module
The TDA2030 is a monolithic integrated circuit in Penta watt package, intended for use as a low frequency class AB amplifier. Typically it provides 14W output power (d = 0.5%) at 14V/4W; at ± 14V or 28V, the guaranteed output power is 12W on a 4W load and 8W on a 8W.
The TDA2030 provides high output current and has very low harmonic and cross-over distortion. Further the device incorporates an original (and patented) short circuit protection system comprising an arrangement for automatically limiting the dissipated power so as to keep the working point of the output transistors within their safe operating area. A conventional thermal shut-down system is also included.
1. Onboard TDA2030A audio power amplifier chip
2. Mono 18W amplifier circuit design

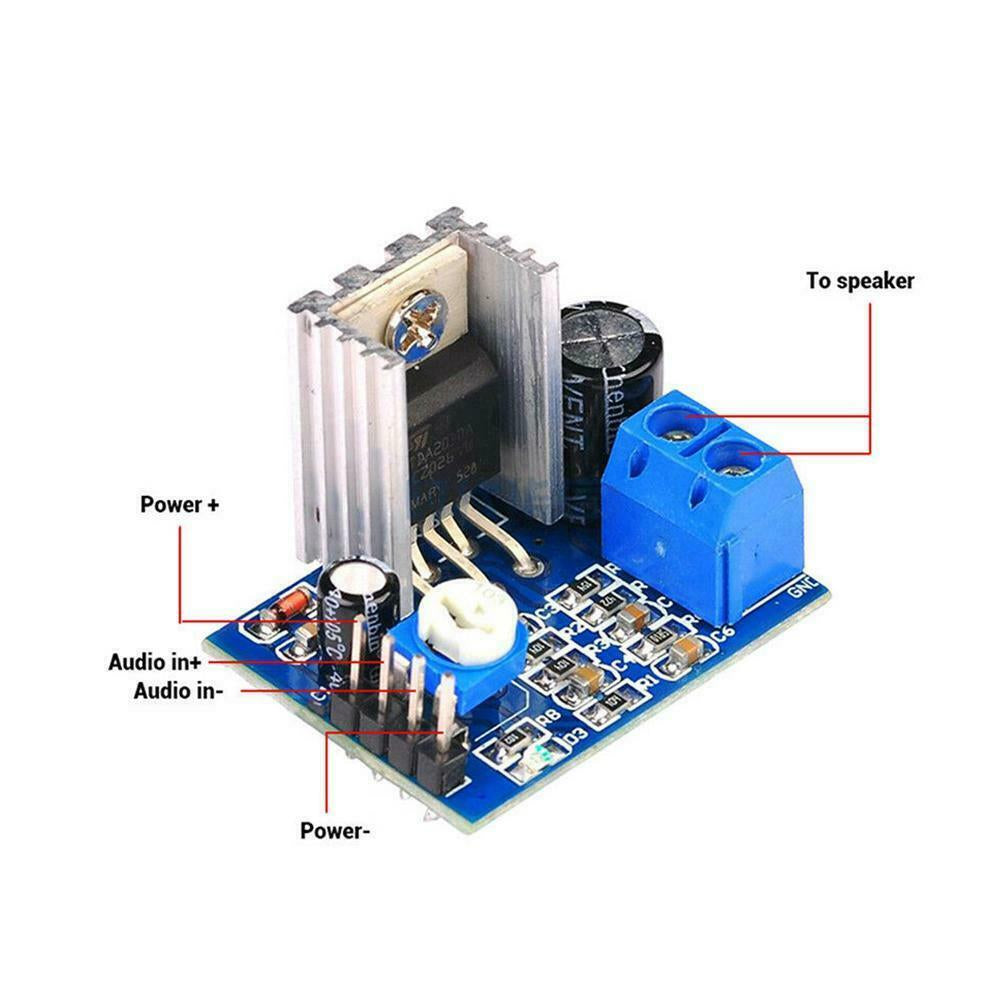

3. On-board speaker wiring blocks
4. Onboard 10K adjustable resistance, you can adjust the volume of amplification
5. Onboard power indicator

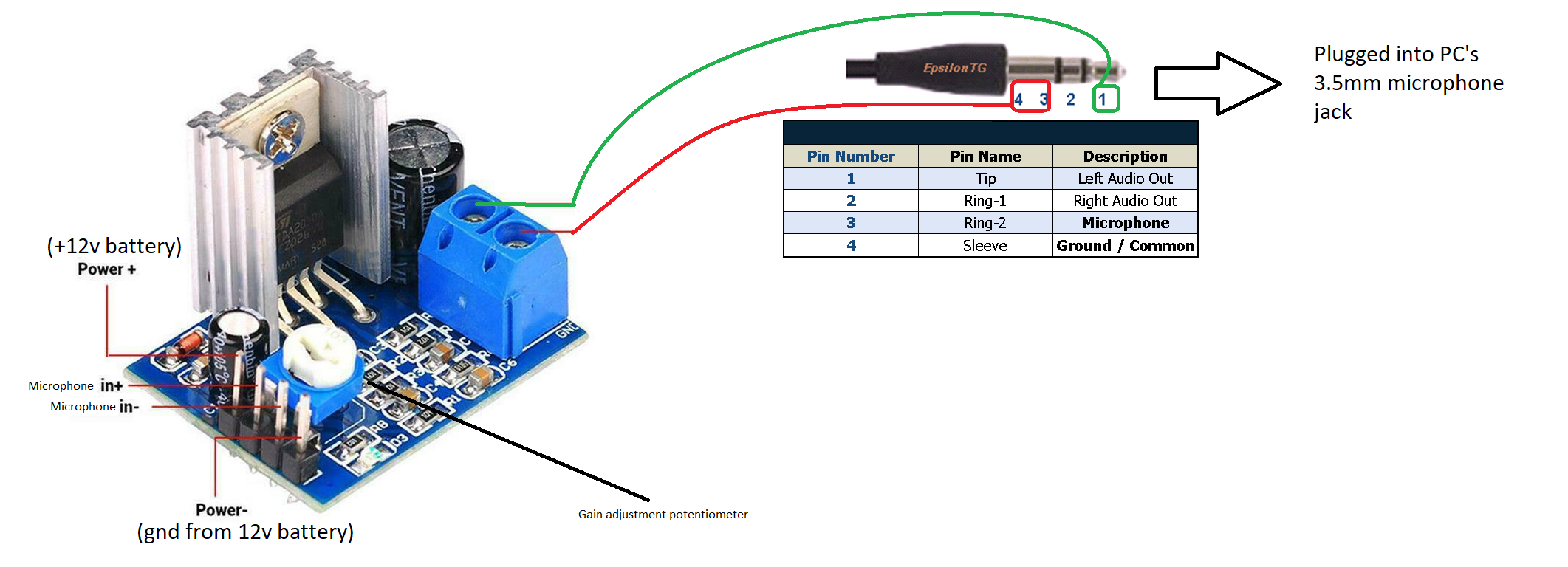

6. The chip has been the main pin leads, you can directly enter the audio signal
7. The working voltage: 6 ~ 12V
8. The peak output current is 3A
