Description
- Specification:
- Item Type: Amplifier Board
- Operation Mode: D class (PWM modulation)
- Chip Model: PAM8610
- Voltage Range: DC6V-15V(Protection)
- Recommended Voltage: DC12V (20mA)
- Cooling volume: No need to heat
- Channel Type: Dual Channel
- SNR: 90%
- Frequency Response: 20Hz-15KHz
- Static Current: 20mA
- Onput Impedance: 4-8Ω
- Harmonic Distortion: <0.1%
- Output Power: 10W+10W(8Ω speaker box); 15W+15W(4Ω speaker box)

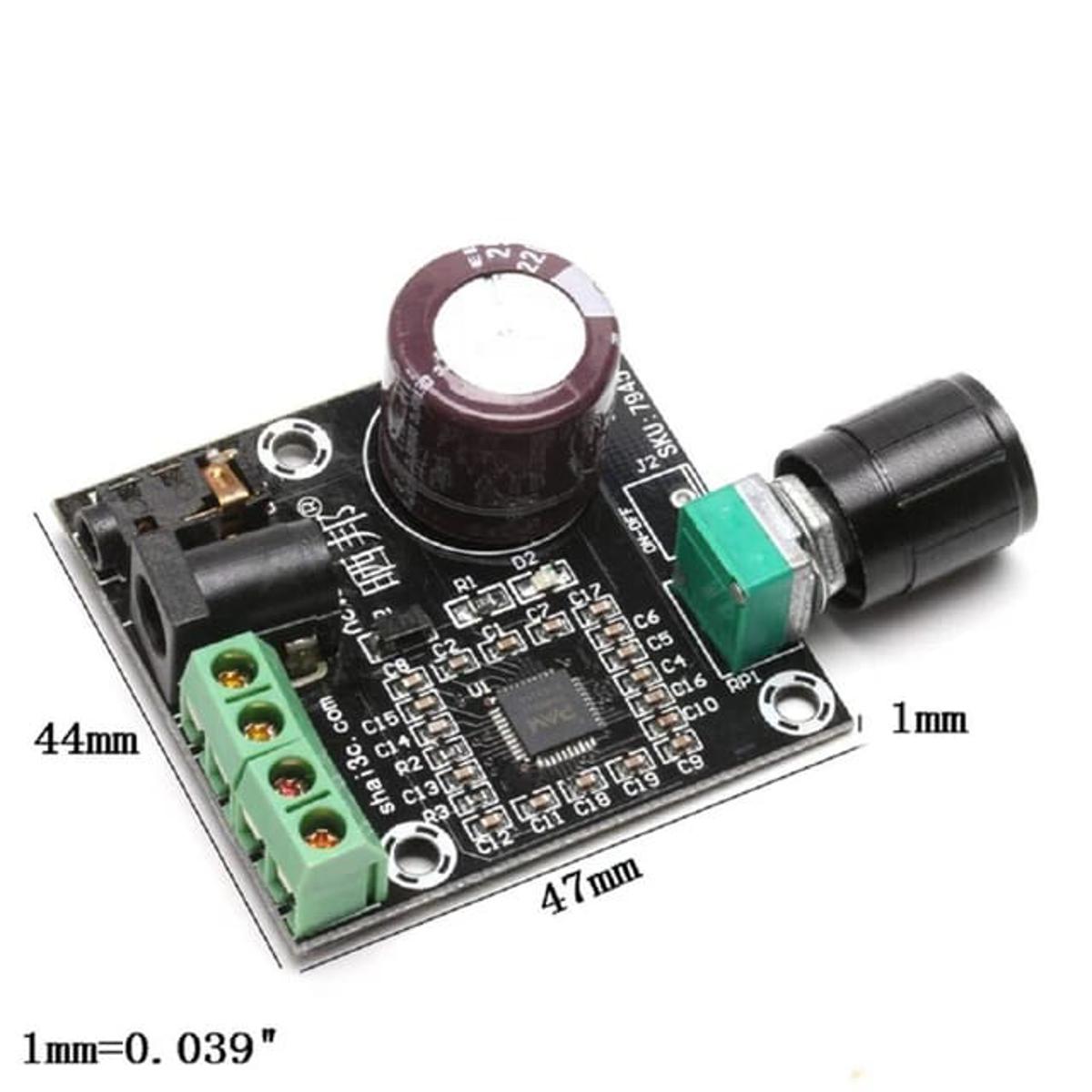

- Size: 45x48x18mm / 1.77x1.89x0.71in (exclude protruding part of the potentiometer)Package List:
- 1 x Amplifier Board1 x Washer1 x Nut1 x Knob Ca

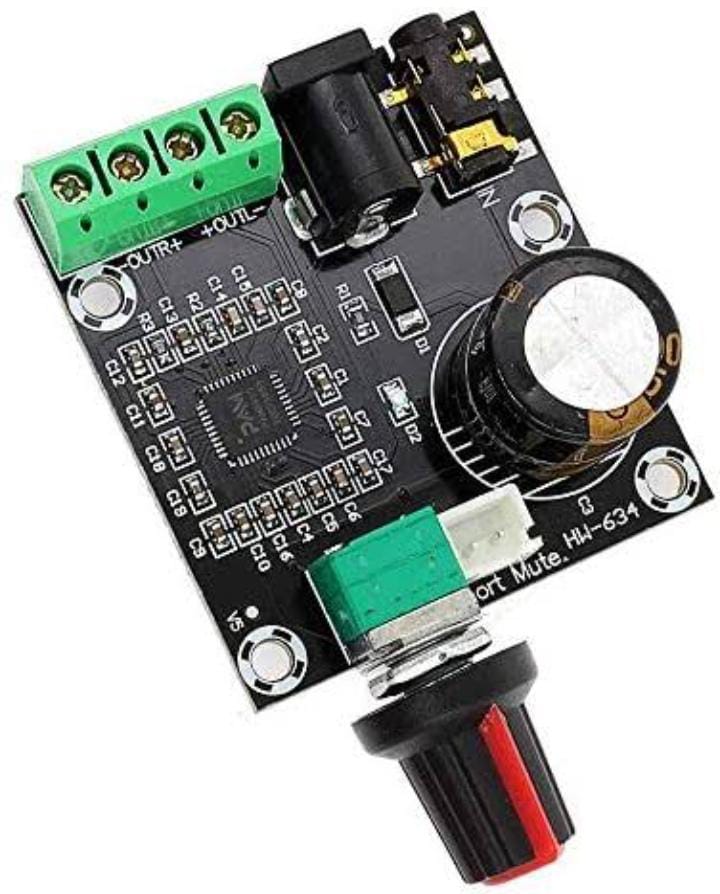

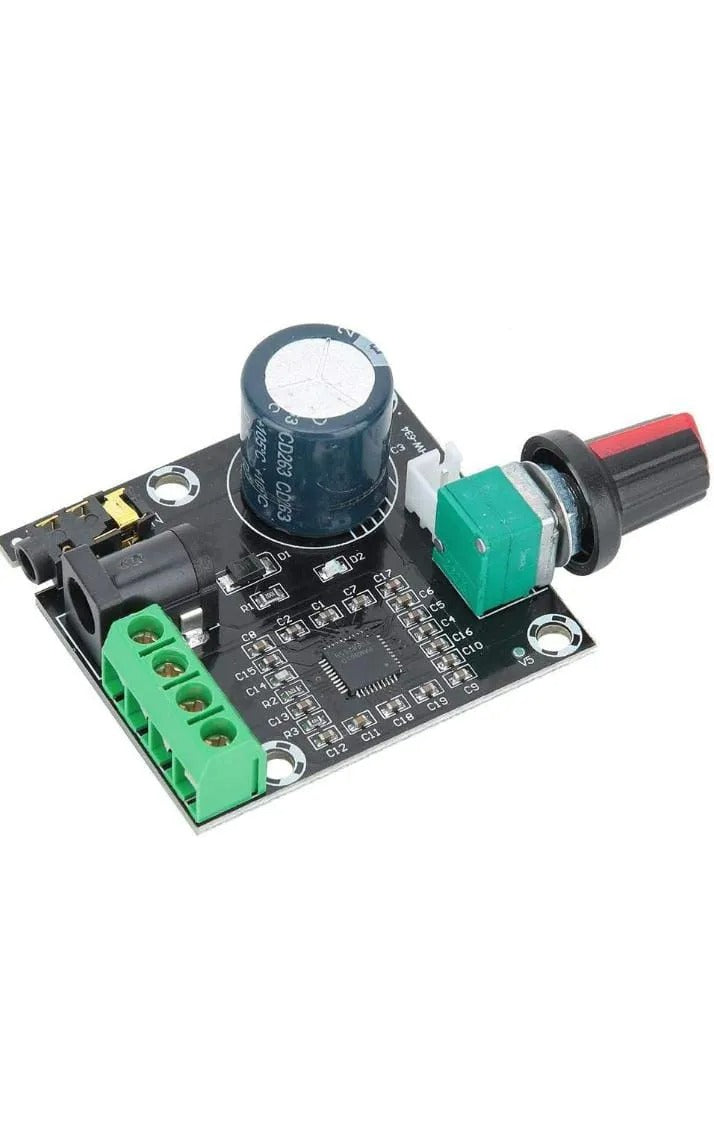

Class D power amplifier board uses high-performance PAM8610 amplifier chip, clear sound quality.This class D amplifier board adopts high performance PAM8610 amplification chip, with loud and clear sound quality.The power amplifier board can be used to switch power supplies, make MP3 / MP4, mobile phones, laptops, etc.Class D power amplifier board is a new high-efficiency digital amplifier, input DC6-15V, can receive 15Wx2 power.We provide you with the best customer experience, if you are satisfied please contact Astyer.
