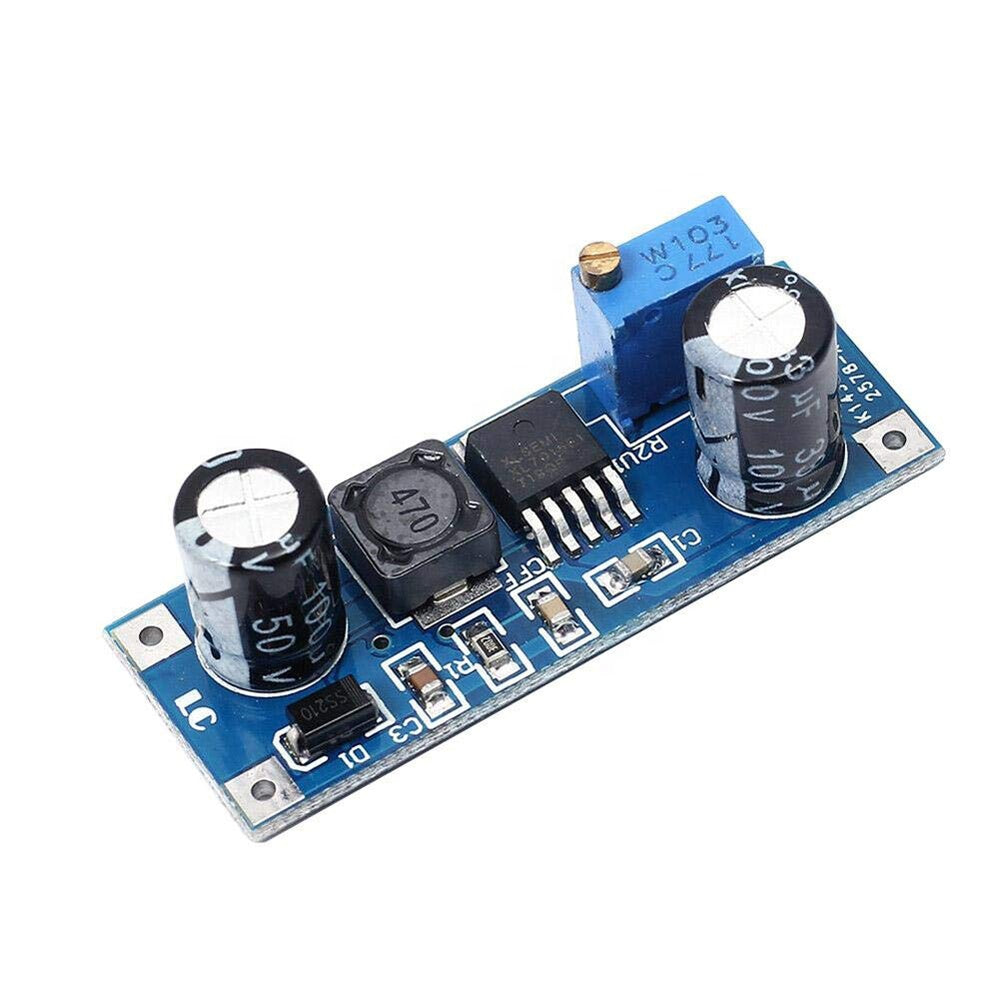

XL7015 V2 DC-DC Converter Step-down Module 5V-80V Wide Voltage Input 7005A LM2596

XL7015 V2 DC-DC Converter Step-down Module 5V-80V Wide Voltage Input 7005A LM2596

Rs.280.00

Tax included.

Product details of XL7015 V2 DC-DC Converter Step-down Module 5V-80V Wide Voltage Input 7005A LM2596 XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver...

Out of stock
Add to Wishlist
Ask a Question
Availability : In StockIn StockOut of stockCategories: Converters, Modules
Description

Product details of XL7015 V2 DC-DC Converter Step-down Module 5V-80V Wide Voltage Input 7005A LM2596

  • XL7015 DC-DC step-down module is a highly efficient, high-voltage step-down DC- DC converter that can deliver up to 0.8A output current capability, low ripple, excellent line regulation and load regulation, input voltage to a maximum of 80V, far more than 2596 modules. Chip built a variety of protection mechanisms. It can be applied to electric vehicle controllers.1. 5V to 80V wide input voltage range;2. The output voltage is adjustable from 5V to 20V;3. The minimum pressure drop 1V;4. The maximum switching current of 0.8A;5. Recommended output power less than 7W;6. Built-in thermal shutdown protection, output short circuit protection, overcurrent protection;7. The excellent linearity and load regulation;Hardware introduction and notesBoard size: 16mm * 44mm;Wiring1. VIN: input voltage (5V-80V);2. GND: the input voltage ground terminal;3. VOUT: Output voltage terminal (5V-20V);4. GND: output voltage of the ground terminal
  • XL7015 XL7015_V2 DC – DC buck type module is A highly efficient, high pressure step-down DC – DC converter.
  • Provides the Highest 0.8 A output current capability
  • Low Ripple
  • Excellent Linear Regulation and Load Regulation
  • Up to A maximum of 80v Input Voltage
  • Chip built-in various protection mechanisms
  • Can be applied to Electric Vehicle Controller, etc.
  • 5 v to 80v Wide Input Voltage Range
  • The Output Voltage from 5v to 20v adjustable by Potentiometer
  • The minimum pressure drop is 1v
  • 0.8 A Biggest Switch Current
  • Recommend the output power is less than 7w
  • Shut off built-in Overheating Protection
  • Output Short Circuit Protection
  • Over Current Protection
  • Good linear with load regulation

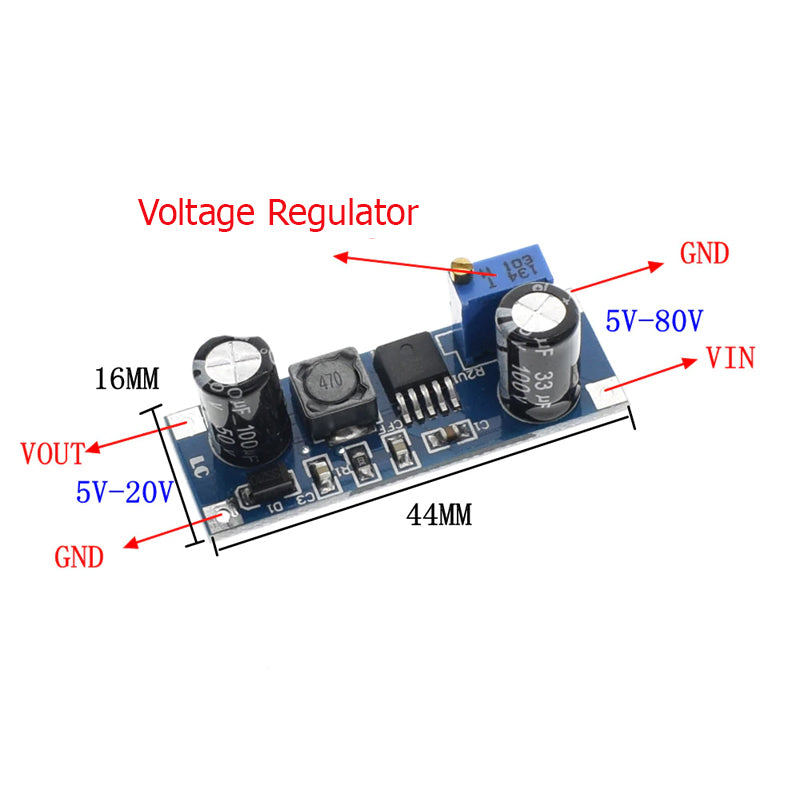

  • The board size: 16 mm * 44 mm
  • PINOUTSVIN: Input voltage (5 v – 80v)
  • The GND: Input Voltage GND
  • The VOUT: Output Voltage (5 v – 20 v)
  • The GND: Output Voltage GND
