Lora Ra-01 433mhz Sx1278 Long Range Wireless Module
Tax included.
Features: LoRaTM spread spectrum communication +20dBm - 10mW. Stable RF output power when the input voltage changed Half-duplex SPI communication The programmable bit rate can reach to 300kbps Support FSK, GFSK,...
Features:
- LoRaTM spread spectrum communication
- +20dBm - 10mW. Stable RF output power when the input voltage changed
- Half-duplex SPI communication
- The programmable bit rate can reach to 300kbps
- Support FSK, GFSK, MSK, GMSK, LoRaTM and OOK Modulation Mode
- 127dB RSSI wave range.
- Automatically detect RF signal, CAD model, and super high-speed AFC
- With CRC 256 bytes data engine
- Half hole (castellated hole) SMD package
- With metal shielding case
- Spring antenna
Specifications:
- Wireless Standard: 433MHz
- Frequency range: 420 - 450MHz

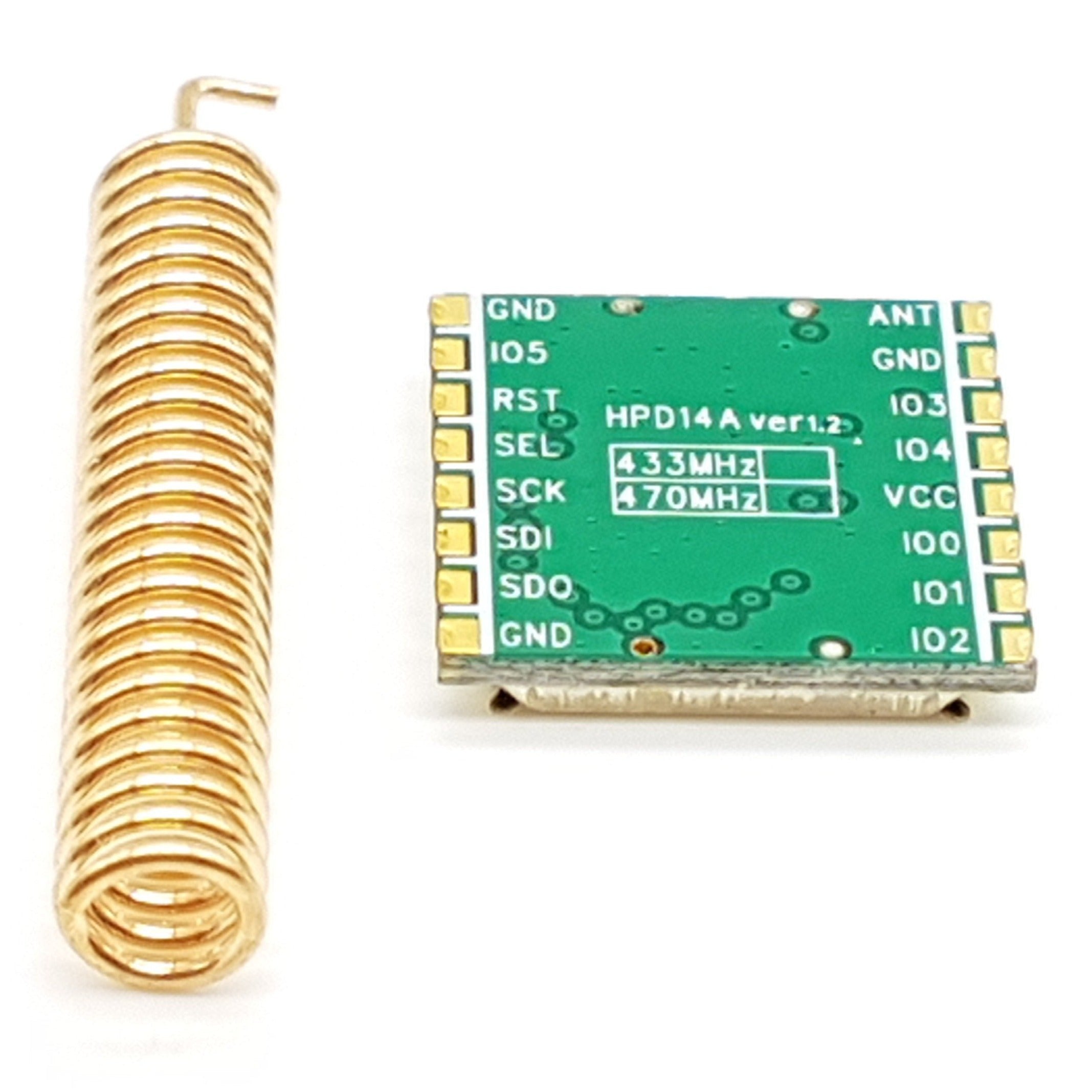

- Port: SPI/GPIO
- Operating Voltage: 1.8 - 3.7V, default 3.3V
- Working Current, Receive: less than 10.8mA (LnaBoost closed, Band 1)
- Transmit less than 120mA (+20dBm),
- Sleep model: 0.2uA
- Working temperature: -40- +85 degrees
- Pin pitch: 2.0 mm
Package Includes:
- 1 x 433Mhz SX1278 Long Range Wireless Module
