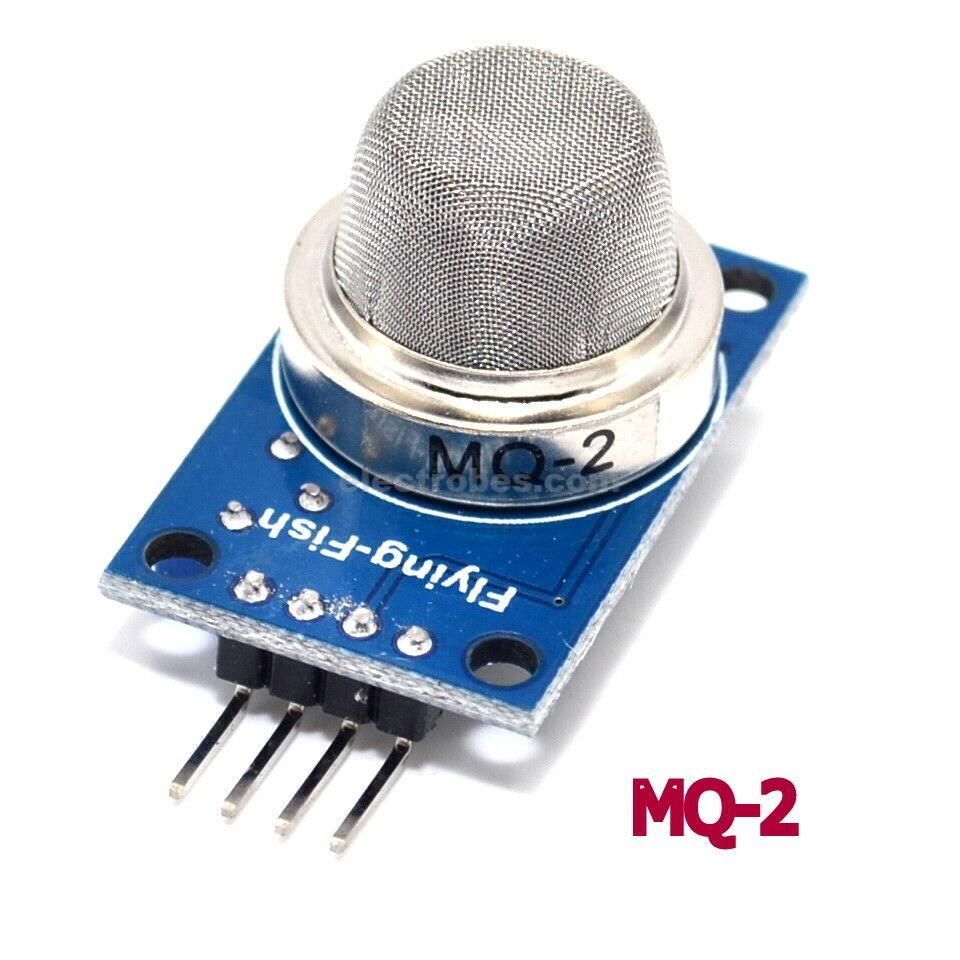

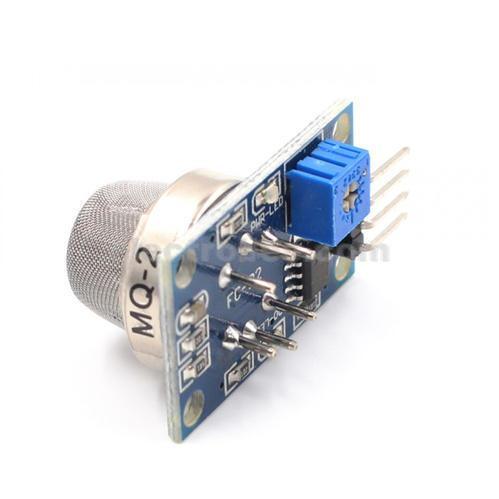

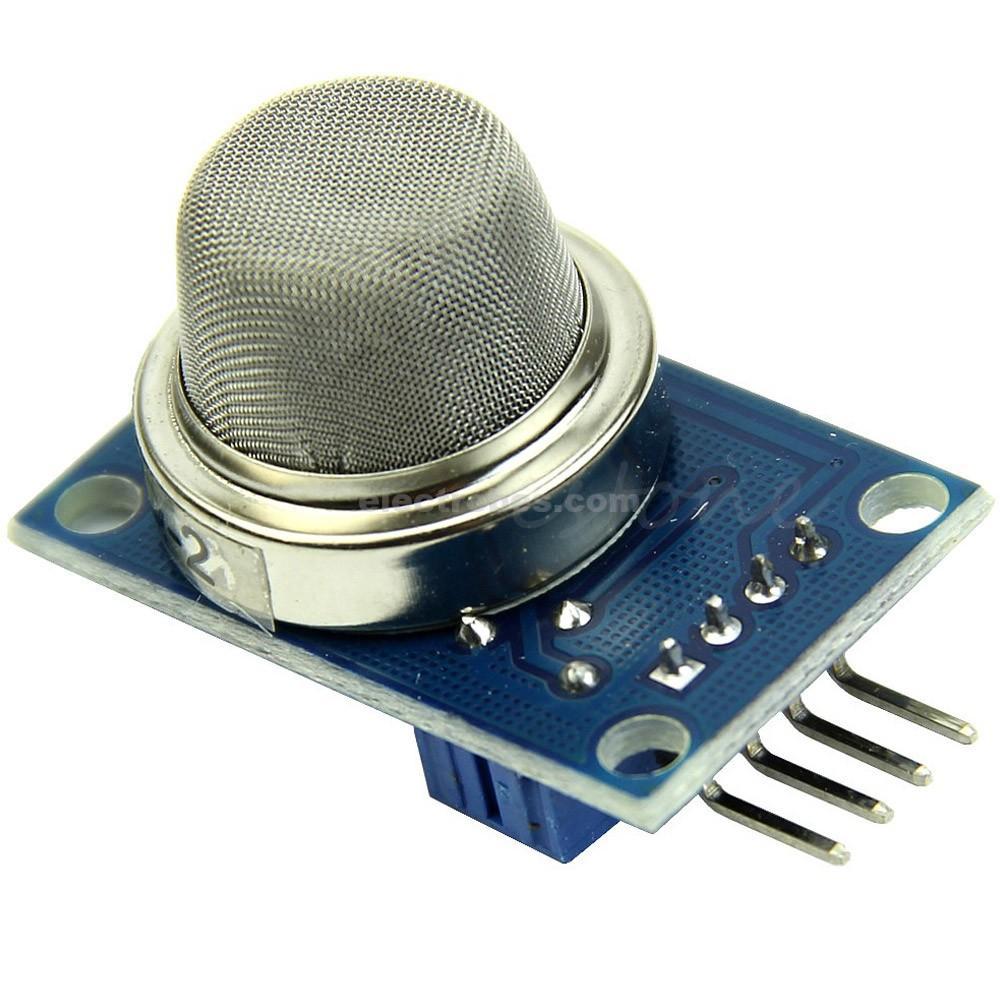

Features: Sensitive for LPG, propane, hydrogen Output voltage boosts along with the concentration of the measured gases increases Fast response and recovery Features boost circuit Adjustable sensitivity Signal output indicator Pin...
| Pin No: | Pin Name: | Description |
| For Module | ||
| 1 | Vcc | This pin powers the module, typically the operating voltage is +5V |
| 2 | Ground | Used to connect the module to system ground |
| 3 | Digital Out | You can also use this sensor to get digital output from this pin, by setting a threshold value using the potentiometer |
| 4 | Analog Out | This pin outputs 0-5V analog voltage based on the intensity of the gas |
| For Sensor | ||
| 1 | H -Pins | Out of the two H pins, one pin is connected to supply and the other to ground |
| 2 | A-Pins | The A pins and B pins are interchangeable. These pins will be tied to the Supply voltage. |
| 3 | B-Pins | The A pins and B pins are interchangeable. One pin will act as output while the other will be pulled to ground. |
