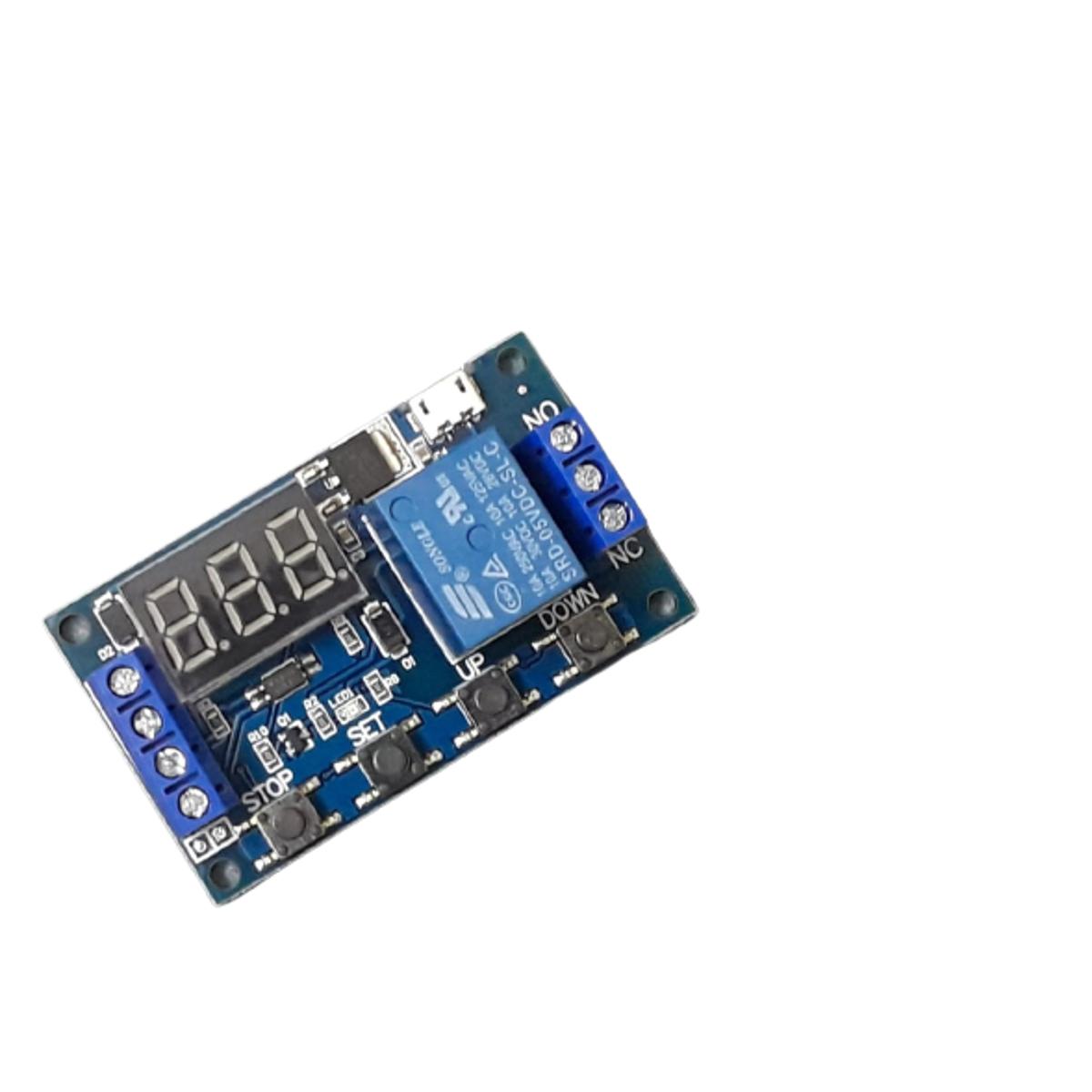

JZ 801 Timer Relay Module Switch Trigger Time Circuit Timer Cycle Adjustable

Name: JZ 801 Timer Relay Module Switch Trigger Time Circuit Timer Cycle Adjustable
Brand: Electronic Solution
SKU: SKU:UPC00570
Price: 500.0 PKR
Availability: InStock

Rs.500.00

Tax included.

Model: JZ 801 Name: Timer Relay Module Operating voltage: 6--30V support micro USB 5.0V power supply The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming...

Ask a Question

Availability : In StockIn StockOut of stockCategories: Development Boards, Modules

Description

Description

Model: JZ 801
Name: Timer Relay Module

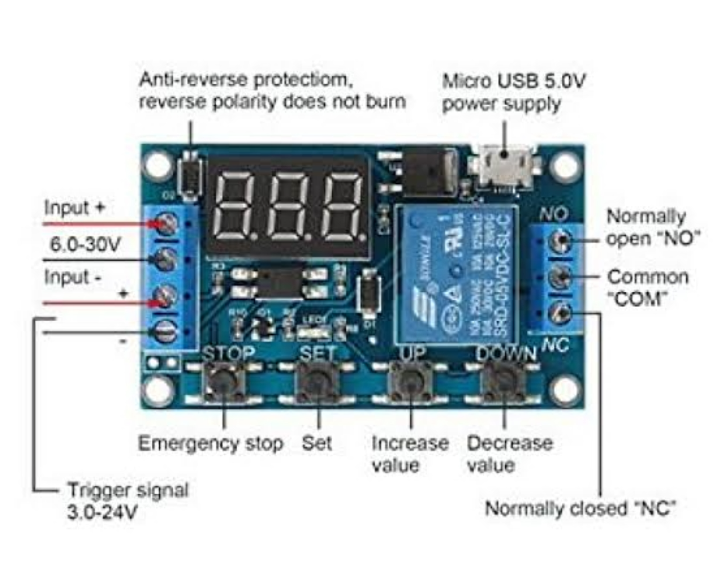

Operating voltage: 6--30V support micro USB 5.0V power supply
The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)
Output capability: You can control the DC or AC within 30v 5A within 220v5A
Quiescent Current: 20mA Operating Current: 50mA
Timing range: 0.1 seconds -999 minutes continuously adjustable;

Model:JZ 801
Name:Timer Relay Module
Operating voltage: 6--30V support micro USB 5.0V power supply
The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)
Output capability: You can control the DC or AC within 30v 5A within 220v5A
Quiescent Current: 20mA Operating Current: 50mA
Timing range: 0.1 seconds -999 minutes continuously adjustable;
