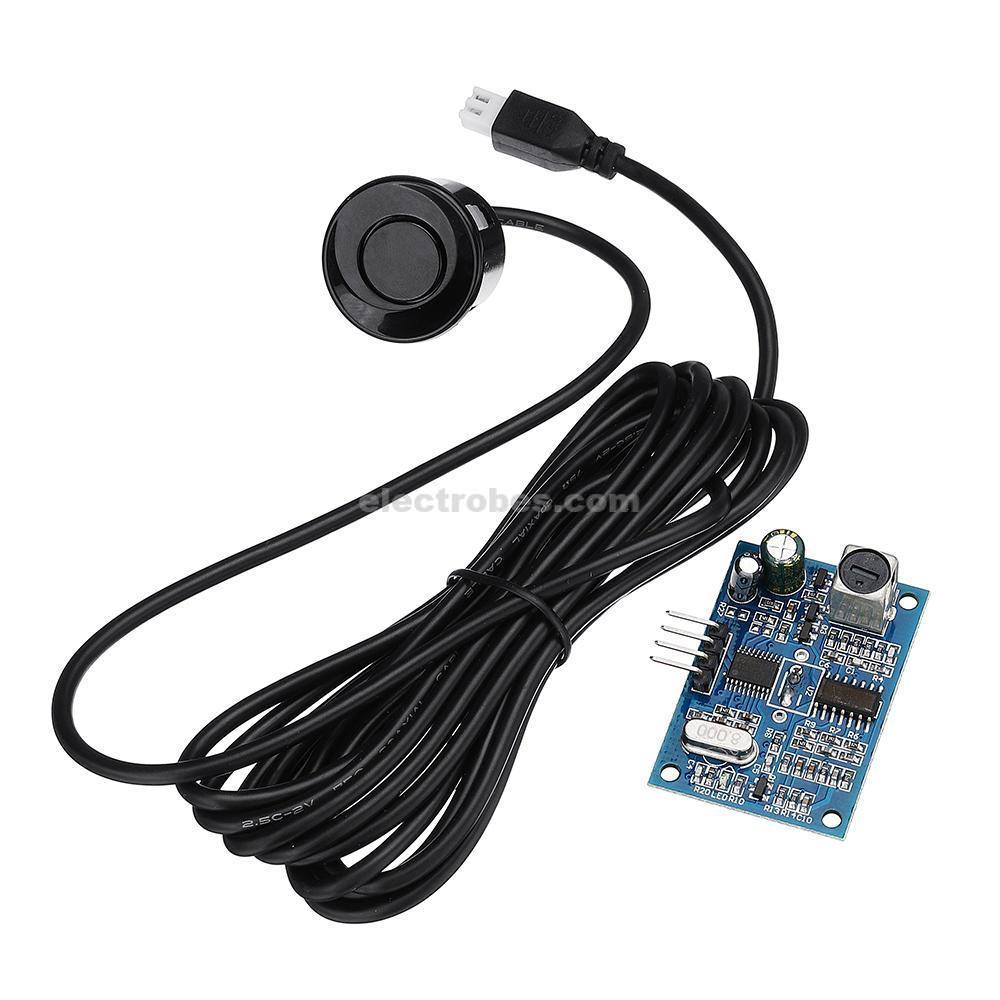

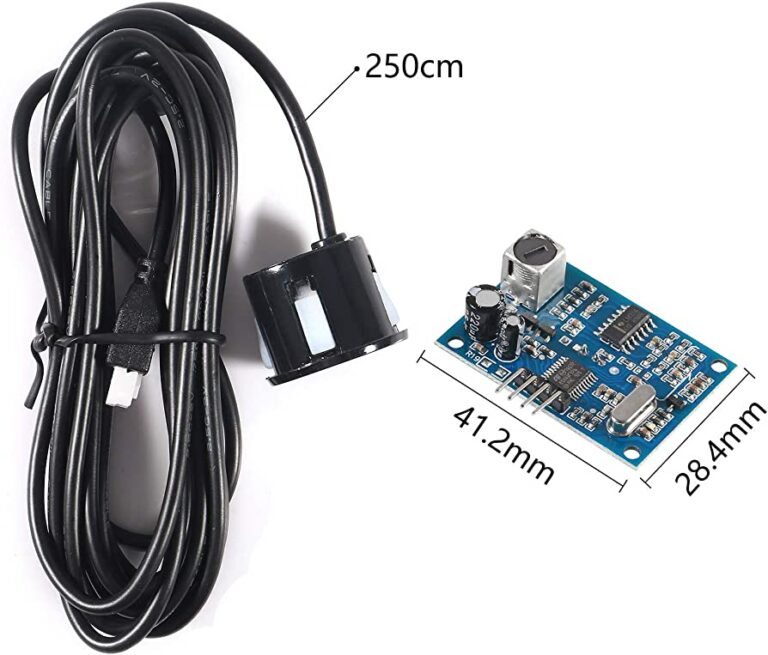

JSN-SR04T Waterproof Ultrasonic Sensor Module

This is a JSN-SR04T waterproof ultrasonic rangefinder module, The use of industrial-grade integrated ultrasonic probe design, which is stable performance. Its usage is as same as HC-SR04, the measurement distance is accurate- about 0.5cm, the furthest distance can be measured is 4.5m, because it is small so easy to carry. Suitable for a variety of wet and harsh measurement environment. In general, it is used in horizontal ranging, obstacle avoidance, automated control, monitoring of objects and its movement, traffic control, security and artificial intelligence, educational research.

Product parameters:

• Operating voltage: DC 3.0~5.5V
• Operating current: less than 8mA
• Probe frequency: 40kHz
• Long range up to: 600cm
• Near Range: 20cm
• Distance accuracy: +-1cm
• Measuring angle: 75 degrees
• Input trigger signal:
  • TTL pulse above 10uS
  • serial transmission instructions 0X55
• Output reverb signal: output pulse width level signal, or TTL

Wiring:

• 3-5.5V (power positive)
• Trig (control) RX
• Echo (output) TX
• GND (power negative)

Features

• small size, easy to use
• low voltage, low power consumption
• high accuracy
• strong anti-jamming
• integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Connection With Arduino:
