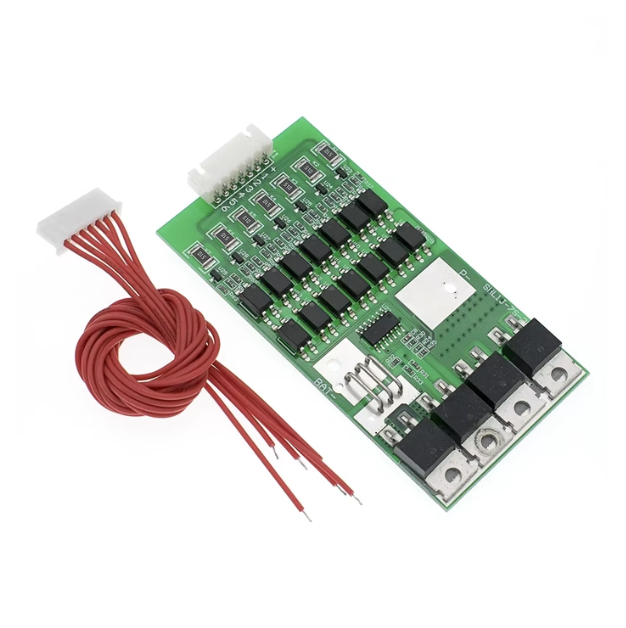

7s 24v 20a 18650 Lithium Lion Battery Charger Module Protection Board Bms Pcb With Wire

Features And Specifications Of 7S 20A Li-ion Lithium Battery PCB BMS 18650 Charger Protection Board:

• 100% brand new and high quality
• Material: Electrical components
• Equilibrium current: 80 mA(VCELL=4.20V)
• Supported battery type: 7 cells 4.2V Lithium-ion battery
• Balancing the locus of control: 4.18±0.03 V
• Overcharge threshold: 4.3±0.05 V
• Overcharge time delay: 75mS
• Overcharge release: 4.1±0.05 V
• Discharge threshold: 2.4±0.08 V
• Discharge delay: 5mS
• Working current: 20 A
• Overcurrent threshold: 30 A
• Static power: ＜500uA
• Overcharge protection function:Yes
• Discharge protection function:Yes
• Over current protection function:Yes
• Balanced protection function:Yes
• Over-current release: Disconnect the load release
• Short circuit protection function: Yes(Disconnect the load can be recovered.)
• This Lithium-ion battery protection PCB protects single Lithium-ion batteries. with 20A continuous current.
• Suitable for electric drills, motors,or aircraft models which require heavy current load.
