Voltage & Current: DC12V 1.1A Stroke & Force: 11.4mm, 300g Action Type: Push Pull; Energized Forms: Intermittent Easy to install for electric door lock or automatic door lock systems Low use...
| Brand | uxcell |
| Special Feature | Light Weight |
| Lock Type | Latch |
| Material | [Inferred] Metal or Metal Alloy |
| Recommended Uses For Product | Cabinet locks, door locks, drawer locks, luggage locks, file cabinet locks, sauna lock, newspaper boxes lock See more |
| Style | Modern |
| Color | Silver |
| Number of Pieces | 1 |
| Included Components | 1 x Electromagnet Solenoid Lock |
| Shape | Rectangular |
| Connectivity Protocol | X10 |
| Manufacturer | uxcell |
| Part Number | a19042500ux0016 |
| Item Weight | 5.3 ounces |
| Package Dimensions | 8.39 x 2.64 x 1.73 inches |
| Item model number | a19042500ux0016 |
| Size | DC12V 1.1A 11.4mm |
| Voltage | 12 Volts |
| Item Package Quantity | 1 |
| Measurement System | Metric |
| Special Features | Light Weight |
| Batteries Required? | No |
- Easy to install for the electric door lock or other automatic door lock systems with the mounting board.
- Widely used for the cabinet lock,locker locks,file cabinet locks ,luggage locks,electric locks,door locks,solenoid locks,drawer,newspaper boxes lock ,sauna lock,locker electromagnetic.
Specification:
- Voltage & Current : DC12V 1.1A
- Stroke & Force : 11.4mm, 300g
- Action Type: Push Pull
- Energized Forms: Intermittent
- Lock Tongue Size: 11.4 x 10 x 10mm / 0.45 x 0.39 x 0.39inch (L*W*H)

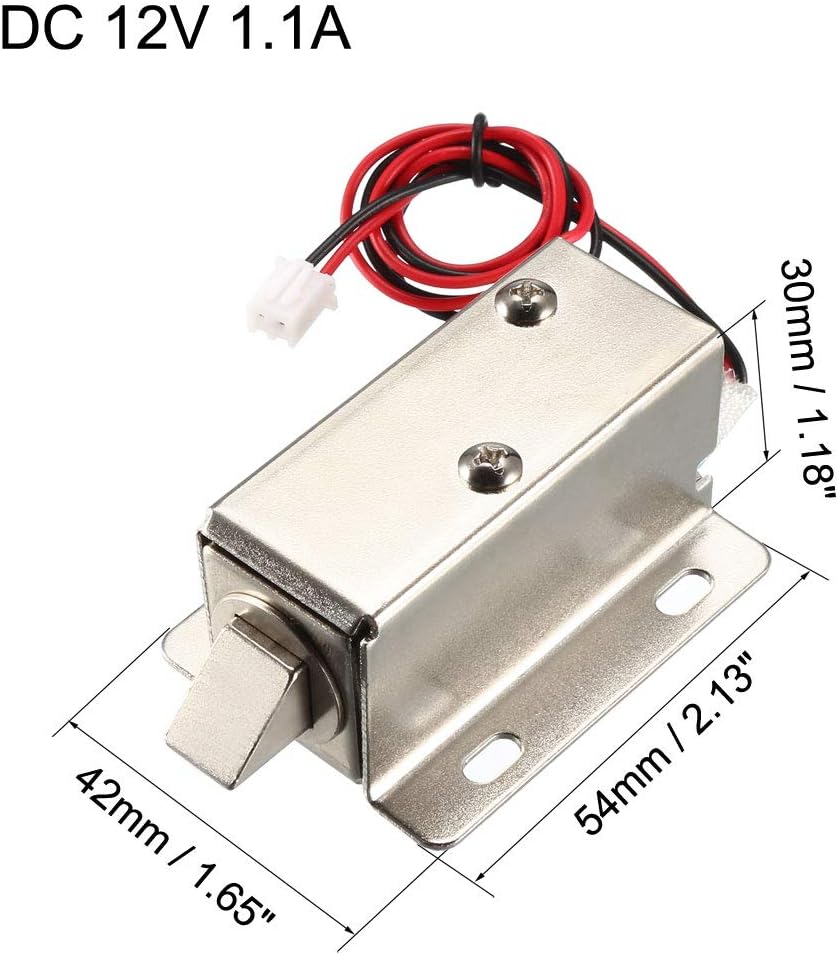

- Body Size: 54 x 42 x 30mm / 2.13 x 1.65 x 1.18inch (L*W*H)
- Mounting Hole Size: 7 x 3.5mm / 0.28 x 0.14 inch (L*W)
- Mounting Hole Distance: 30 x 32mm / 1.18 x 1.26 inch (L*W)
- Package Content : 1 x Electromagnet Solenoid Lock
Instructions for Use:
- When the circuits is charged, the lock tongue will pull back by 11.4mm and the door will be unlocked.
- After the circuits is powered off, the lock tongue will extend to lock the door.

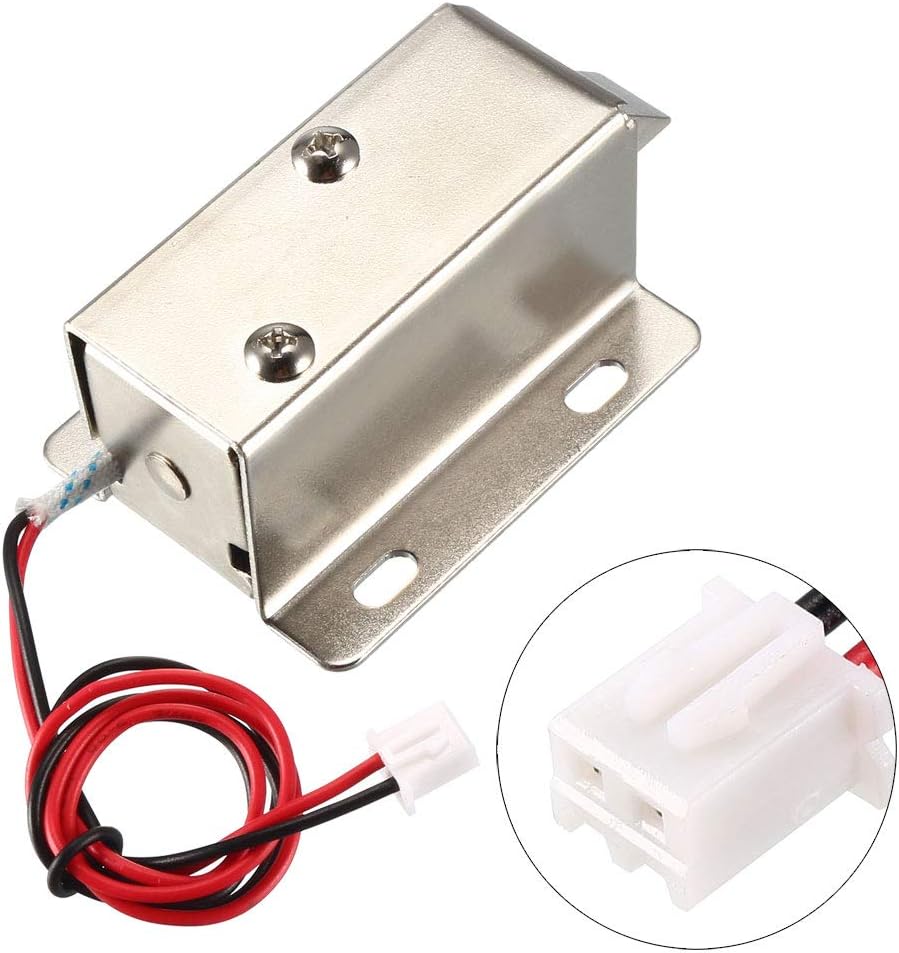

- The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.
- When it has been connected the wire and the current is available, the electric lock can control door's opening and closing.
