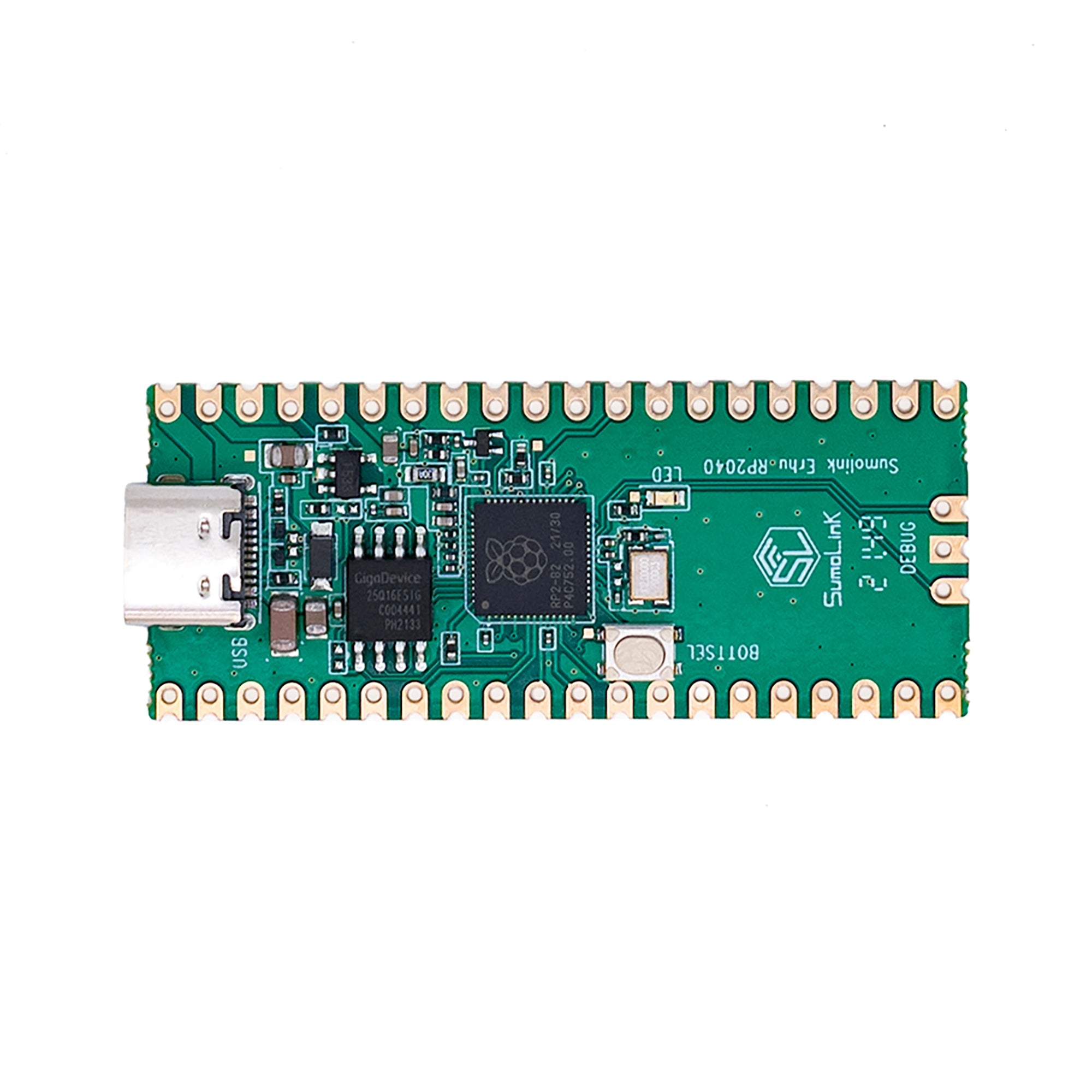

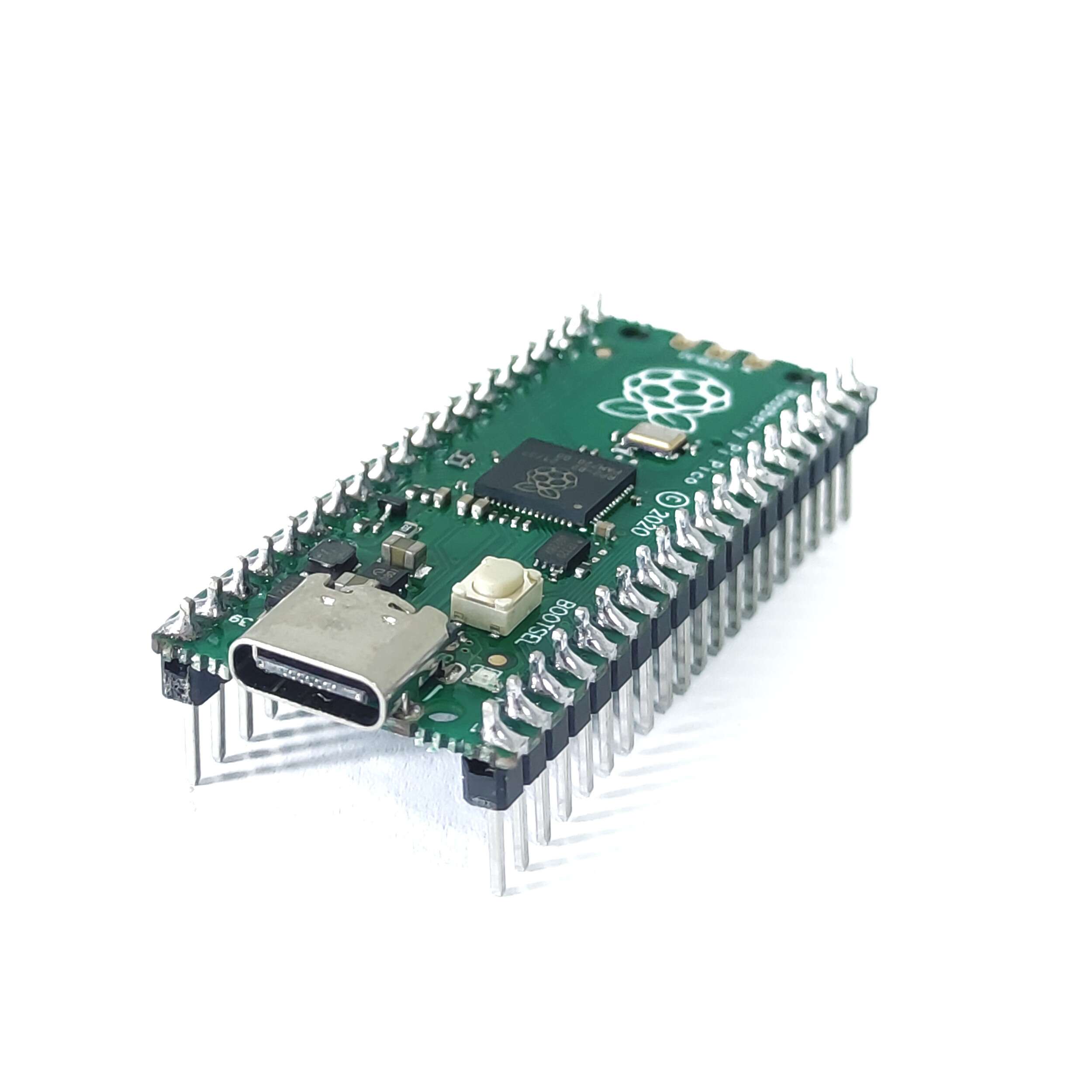

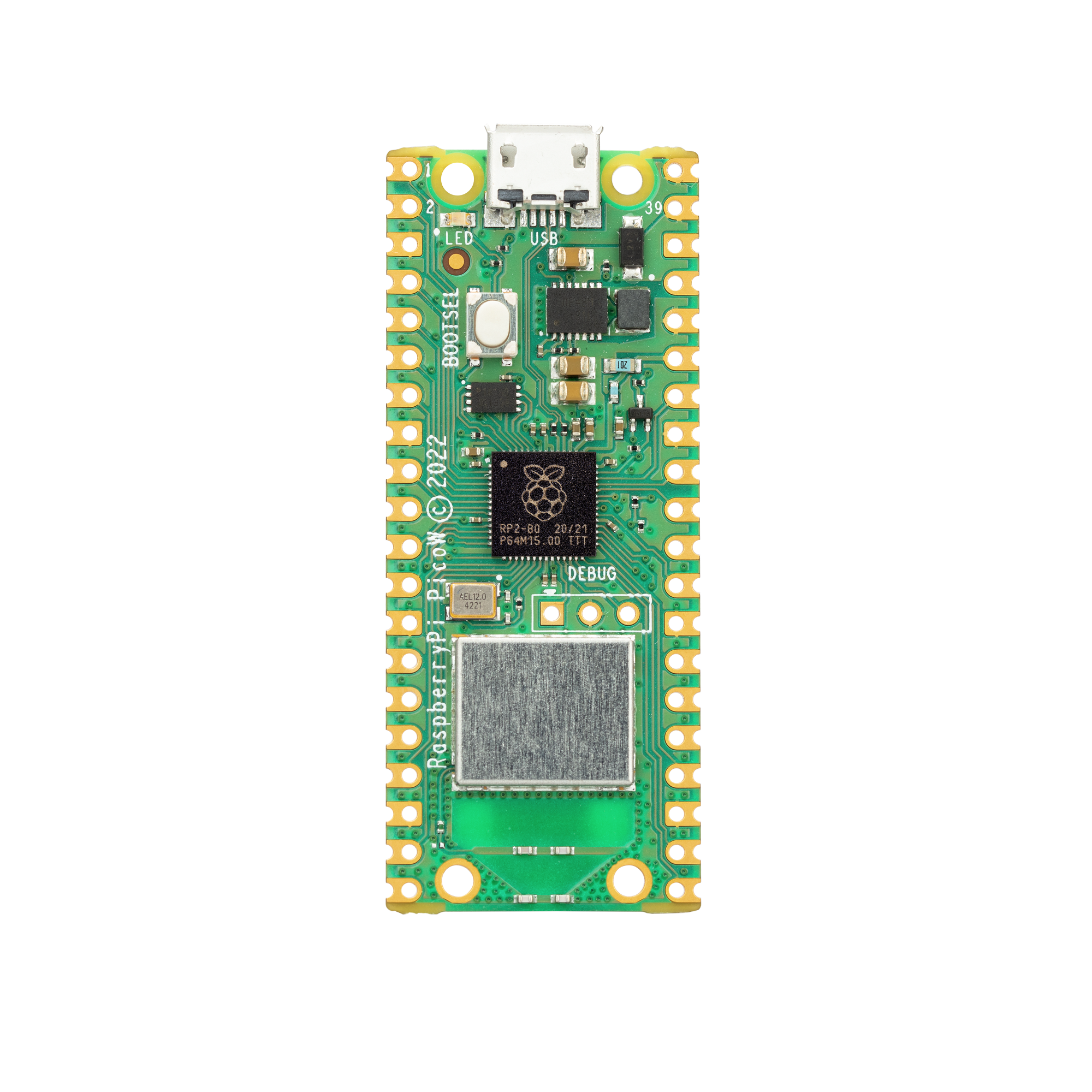

Pre Soldered Raspberry Pi Pico Rp2040 Microcontroller With Usb Cable

• RP2040 microcontroller chip designed by Raspberry Pi
• Dual-core Arm Cortex M0+ processor, the flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of onboard Flash memory
• The castellated module allows soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Specifications Of RP2040 – A Microcontroller By Raspberry pi Pico:

1. Model: Raspberry Pi PICO
2. Operating Voltage: 1.8 ~ 5.5
3. Processor: RP2040 (Dual-core Arm Cortex M0+) By Raspberry Pi
4. Interface: 2 x UART, 2 x I2C, 2 x SPI, up to 16 PWM channels
5. RAM: 264 KB
6. GPIO: 26pins
7. Clock Speed: 133Mhz
8. On-Board Port: Micro-USB 5V/2.5A DC Power Input Port
9. Operating Temperature: -20 to 85
10. Dimension: 51mmx21mmx4mm
