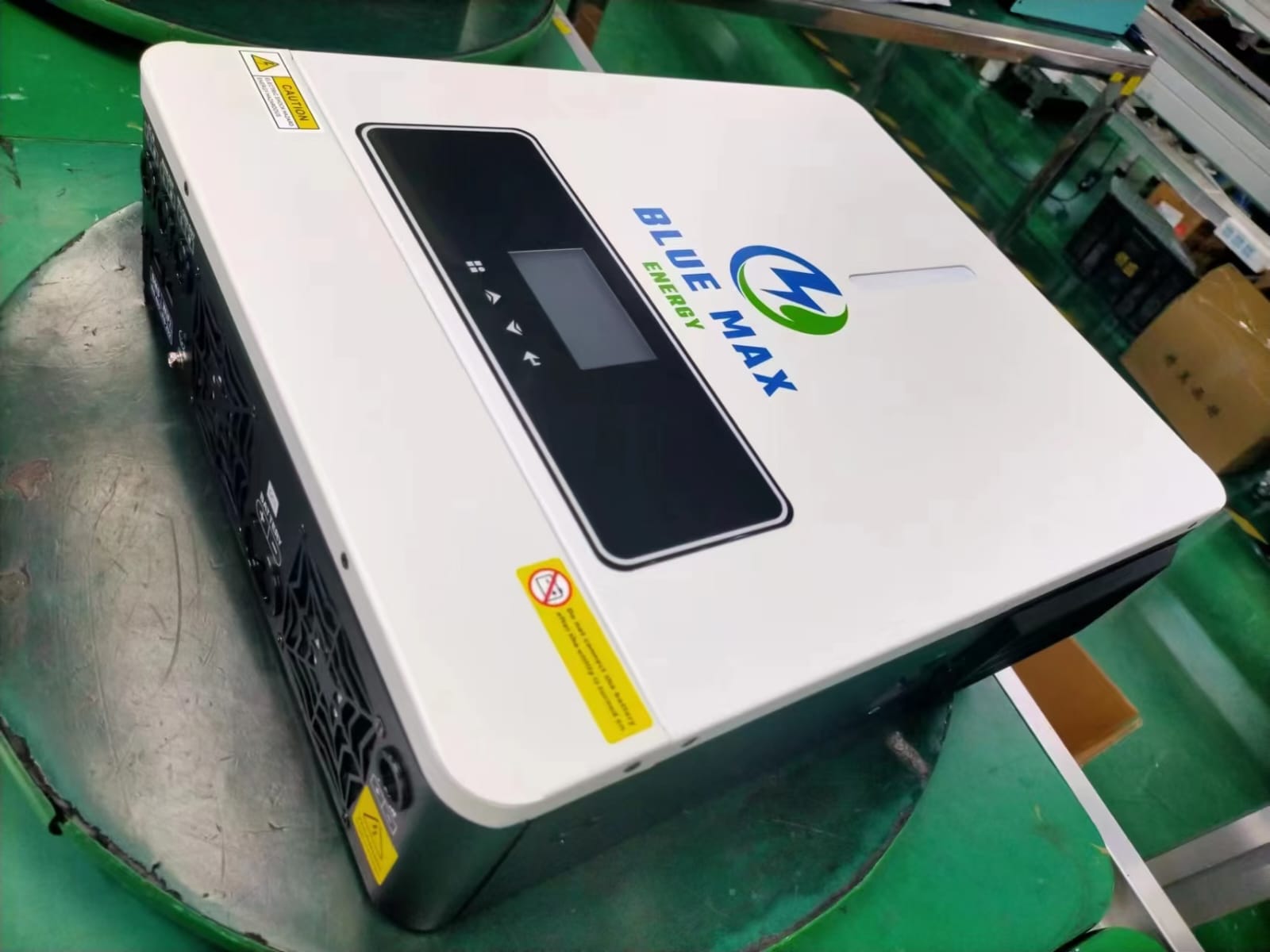

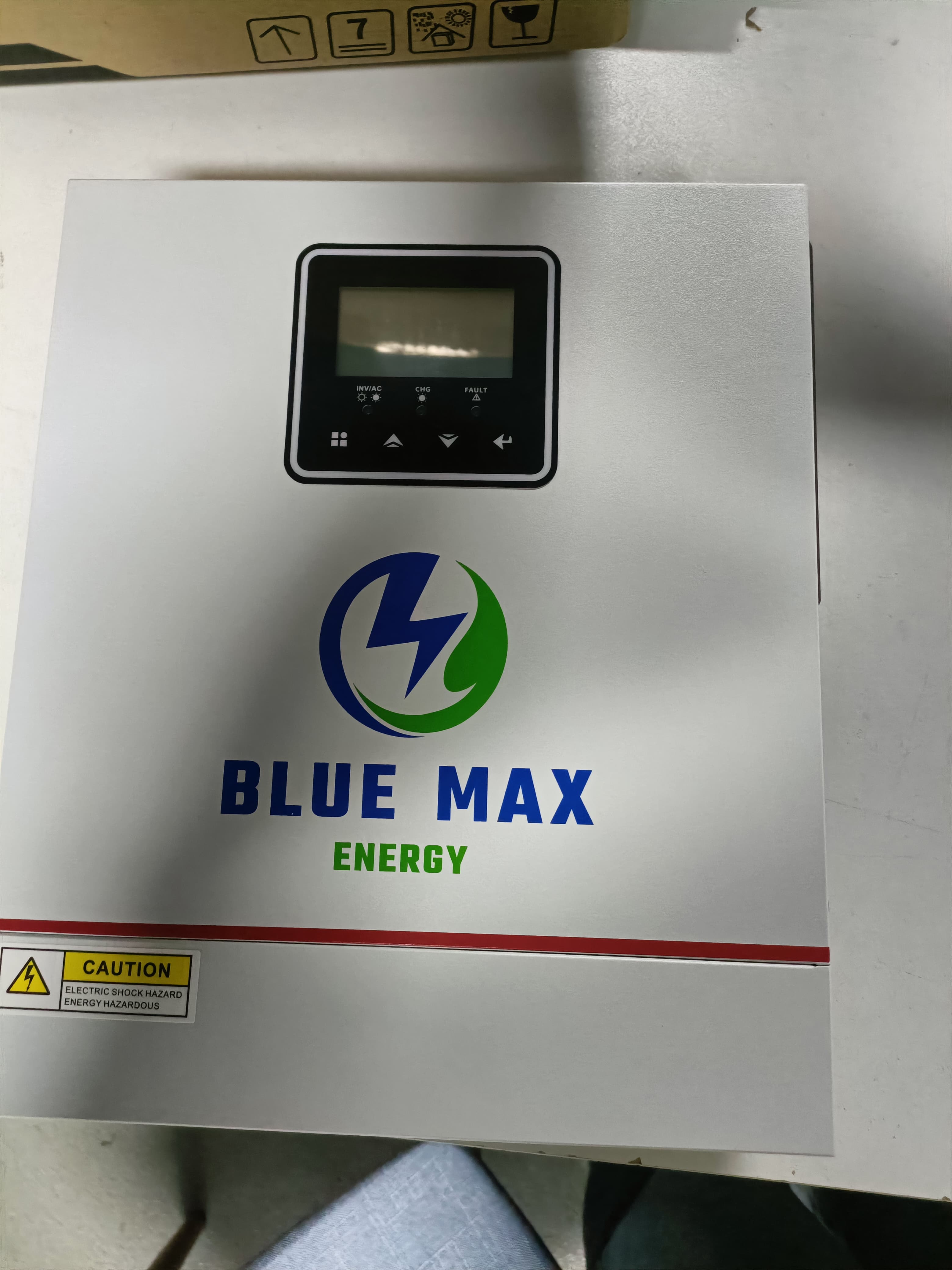

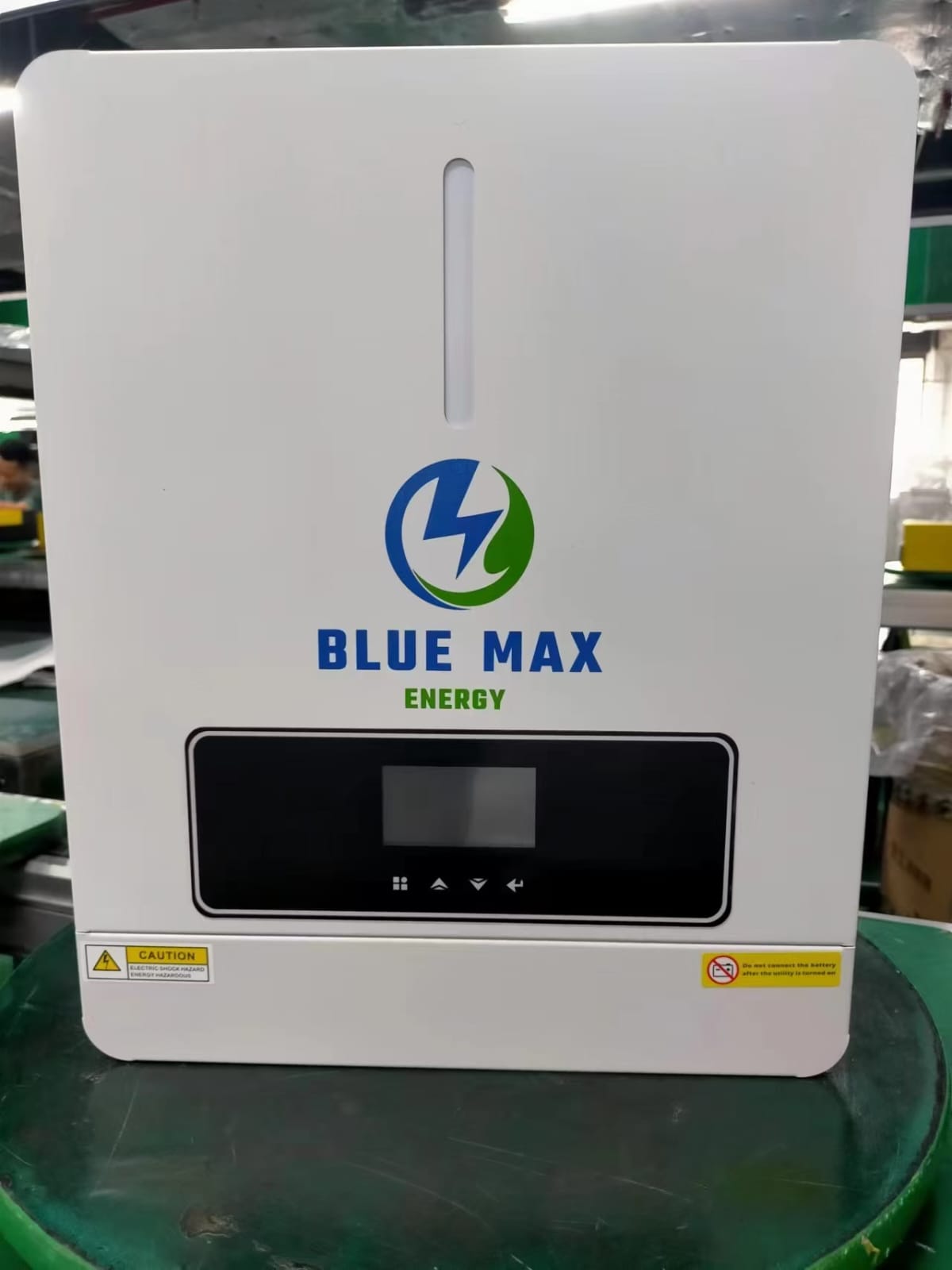

4.2KW 24VDC Hybrid Solar Inverter 4.2KW hybrid solar inverter is true hybrid inverter. Use can use it as off grid inverter, can also use it as on/off grid hybrid inverter. This...
4.2KW hybrid solar inverter is true hybrid inverter. Use can use it as off grid inverter, can also use it as on/off grid hybrid inverter. This 4.2kw solar inverter is with dual AC output and more transportable design. When the battery voltage is low, the inverter shall disconnect the main load and ensure the output of the secondary load, which can extend the operation time of the secondary load. WiFi monitor function is available with 4.2kw inverter, user can see the working data of the 4.2kw solar system via phone App, such as the solar panel power generation, the battery voltage, inverter output voltage etc.
4.2kw
8.4kw
500VDC
6500W
120A MPPT controllers ,
4.2kw+1.4kw pure sine wave inverter
100A AC charger
24VDC
220/230V, 50/60HZ
420*310*110mm/
9KG
It can run without battery
|
Model
|
SYGMAX 4.2KW
|
SYGMAX 6.2KW
|
|
Maximum PV Input Power
|
6200W
|
6500W
|
|
Rated Output Power
|
4200W
|
6200W
|
|
Maximum Solar Charging Current
|
120A
|
120A
|
|
Maximum DC Voltage
|
60-450VDC
|
60-450VDC
|
|
Nominal Output Voltage
|
220/230/240VAC
|
220/230/240VAC
|
|
Nominal DC Votage
|
24VDC
|
48VDC
|
|
Nominal operating frequency
|
50/60Hz
|
50/60Hz
|
|
Output Waveform
|
Pure sine wave
|
Pure sine wave
|
|
Efficiency(DC to AC)
|
94%
|
94%
|
|
Dimension,Dx W x H(mm)
|
420*310*110
|
420*310*110
|
|
Net Weight(kgs)
|
10
|
11
|
